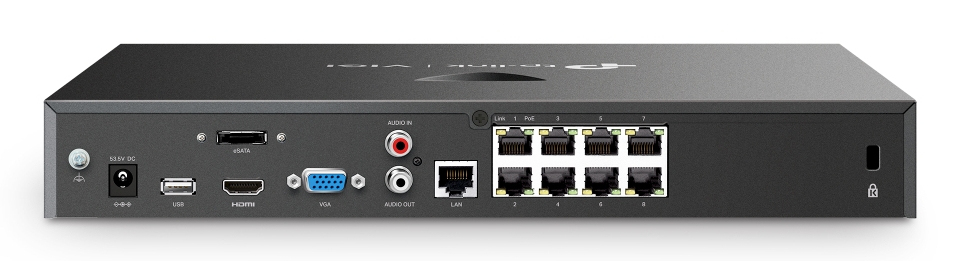

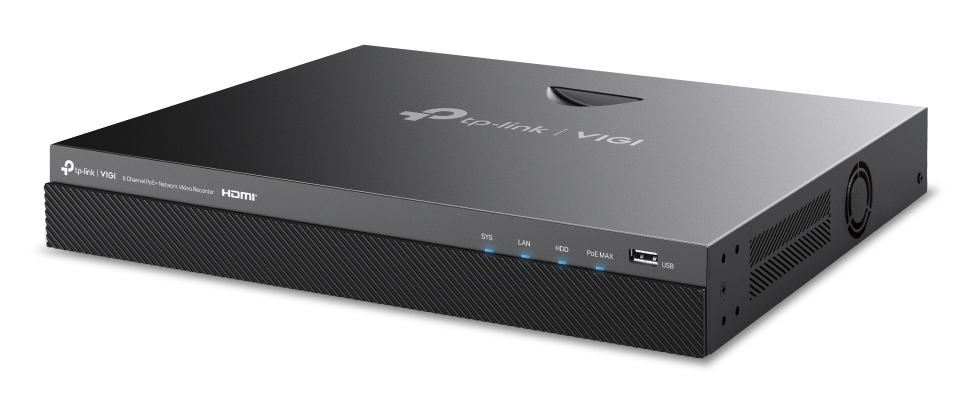

TP-Link VIGI NVR2008H-8MP-2TB
TP-Link

VIGI NVR2008H-8MP-2TB

Model VIGI NVR2008H-8MP-2TBEAN 840030712647

45 specifications
  • Storage2 TB
  • Weight2.1 kg
  • ColourBlack
  • Video input channels8 channels
  • Wi-FiNo
  • Number of HDDs installed1
See all specifications

Overview

Storage
2 TB
Weight
2.1 kg
Colour
Black
Video input channels
8 channels
Wi-Fi
No
Number of HDDs installed
1
Brand
TP-Link
Model
VIGI NVR2008H-8MP-2TB
Part number
VIGI NVR2008H-8MP-2TB
EAN / UPC
840030712647, 4895252507928
Also known as
TP-Link VIGI NVR2008H-8MP-2TB network video recorder Black

Specifications

45 specifications in 8 groups

Performance

Video input channels8 channels
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
Video motion detectionYes
Video loss detectionYes
Audio formats supportedG.711, G.711u, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Input bandwidth80 Mbit/s
Maximum frame rate60 fps
Output bandwidth60 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed1
HDD capacity2 TB
Number of HDDs supported2
Total installed storage capacity2 TB
Maximum storage capacity32 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports9
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
eSATAYes
DC-in jackYes

Features

LED indicatorsYes
Product colourBlack

Power

Power consumption (typical)35 W
Output current2.43 A
Output voltage53.5 V
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget93 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width330 mm
Depth285 mm
Height45 mm
Weight2.1 kg
Package weight4.1 kg
