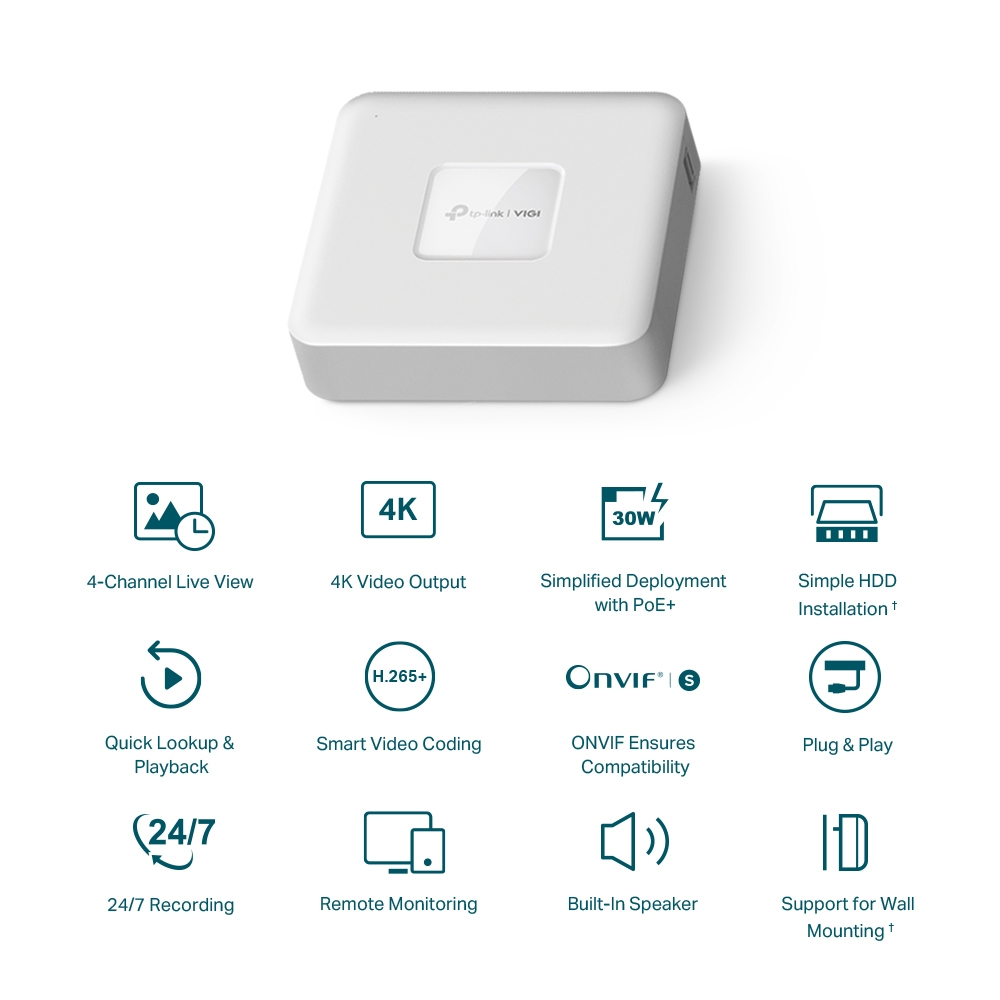

TP-Link VIGI NVR1104H-4P White
TP-Link

VIGI NVR1104H-4P White

Model NVR1104H-4PPart no. VIGI NVR1104H-4PEAN 4897098688786

51 specifications
  • ColourWhite
  • Video input channels4 channels
  • Wi-FiNo
  • Number of HDDs installed0
  • Ethernet LAN (RJ-45) ports5
  • Power consumption (typical)4.82 W
See all specifications

Overview

Colour
White
Video input channels
4 channels
Wi-Fi
No
Number of HDDs installed
0
Ethernet LAN (RJ-45) ports
5
Power consumption (typical)
4.82 W
Brand
TP-Link
Model
NVR1104H-4P
Part numbers
VIGI NVR1104H-4P, VIGI NVR1104H-4P(UN)
EAN / UPC
4897098688786, 9999009303520
Also known as
TP-Link VIGI NVR1104H-4P White

Specifications

51 specifications in 11 groups

Performance

Video input channels4 channels
Number of simultaneously playbacked channels4 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+, H.265, H.265+
DHCP clientYes
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
SyslogYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported1
Maximum storage capacity10 TB
HDD interfaceSATA

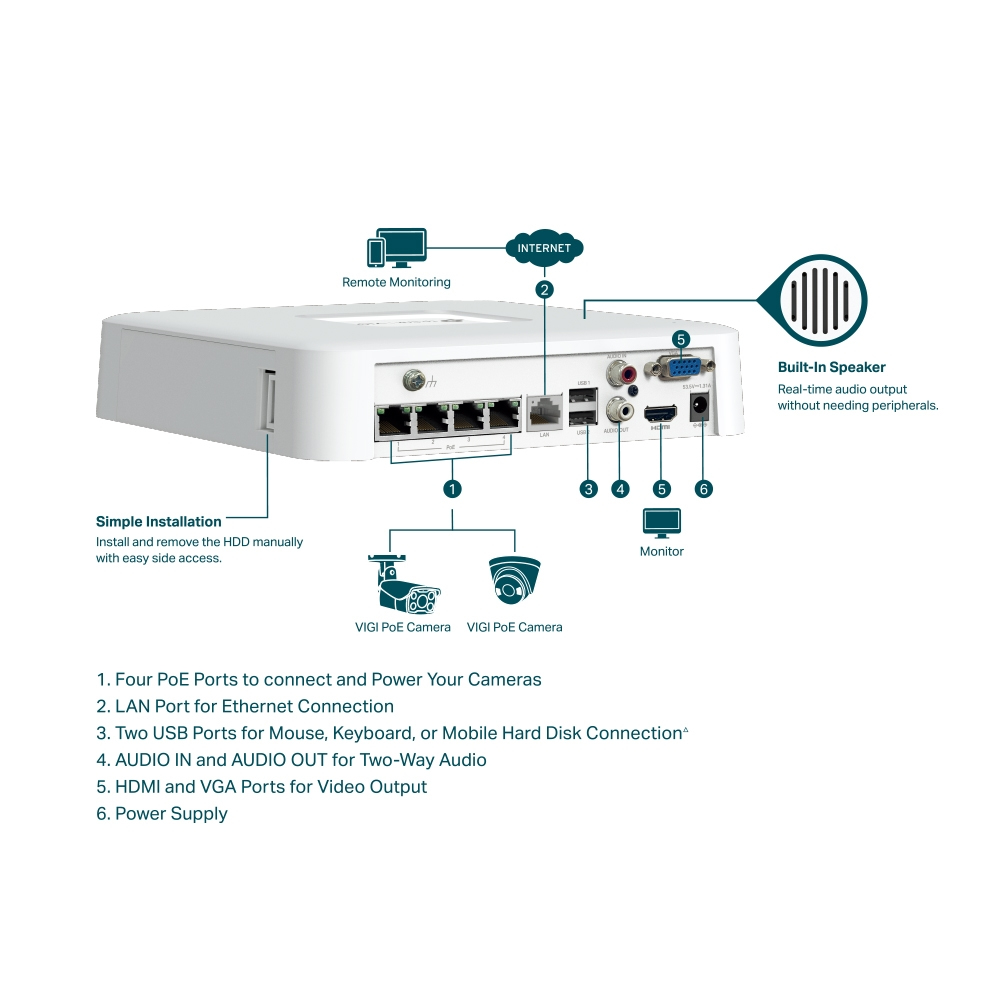

Ports & interfaces

Ethernet LAN (RJ-45) ports5
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates10,100 Mbit/s

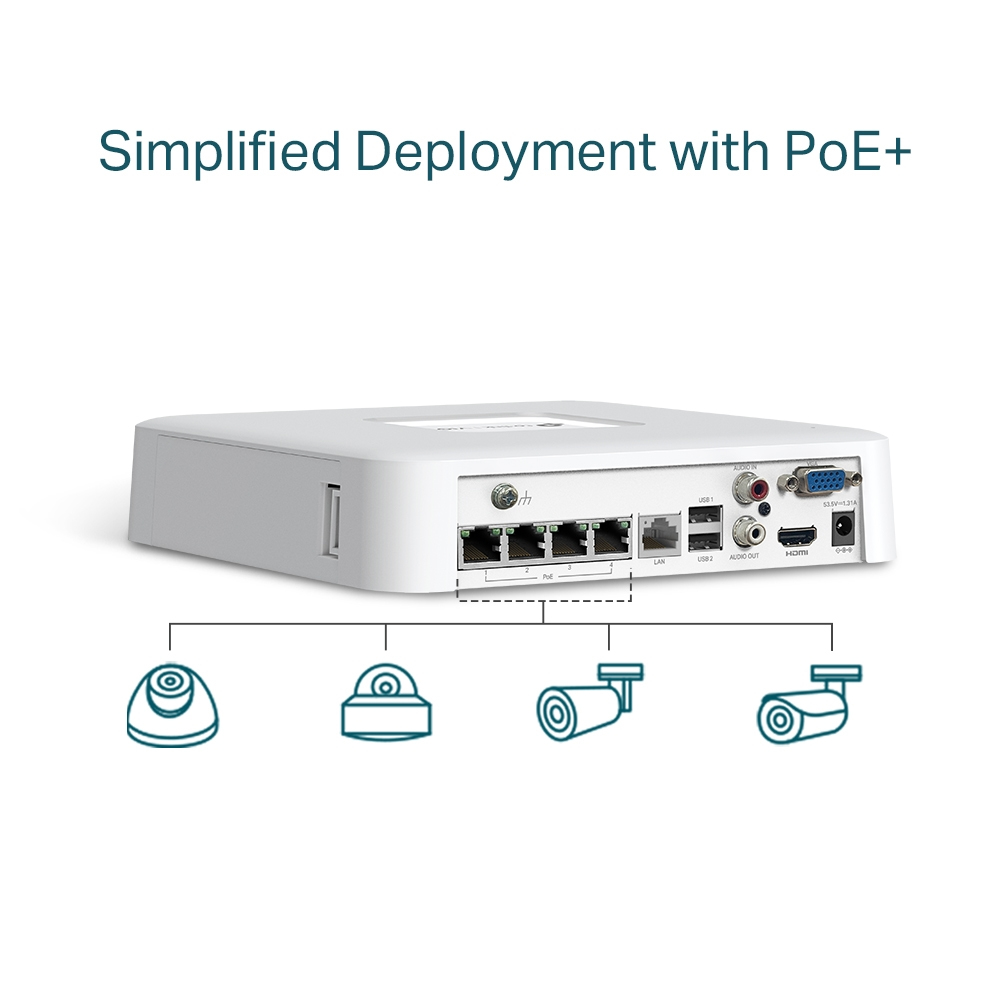

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Ethernet WANYes
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio output1
Line-inYes
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocolsTCP/IP, DHCP, DNS, NTP, UPnP

Features

Rack mountingNo
LED indicatorsYes
Product colourWhite

Display

Built-in displayNo

Power

Power consumption (typical)4.82 W
Output current1.31 A
Output voltage53.5 V
Redundant power supply (RPS) supportYes
Total Power over Ethernet (PoE) budget53 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C

Technical details

Compliance certificatesCE, EAC, Federal Communications Commission (FCC)
Sustainability complianceYes

Weight & dimensions

Width200.3 mm
Depth200.3 mm
Height43 mm
Package width251.5 mm
Package depth401.5 mm
Package height64.5 mm
Package weight1.37 kg

Packaging content

AC adapter includedYes
Quick installation guideYes
