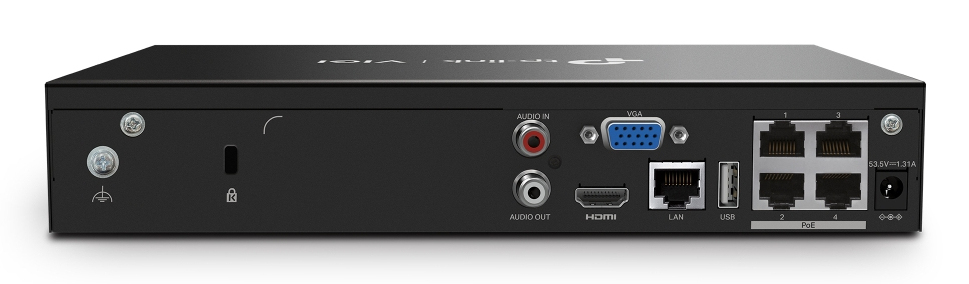

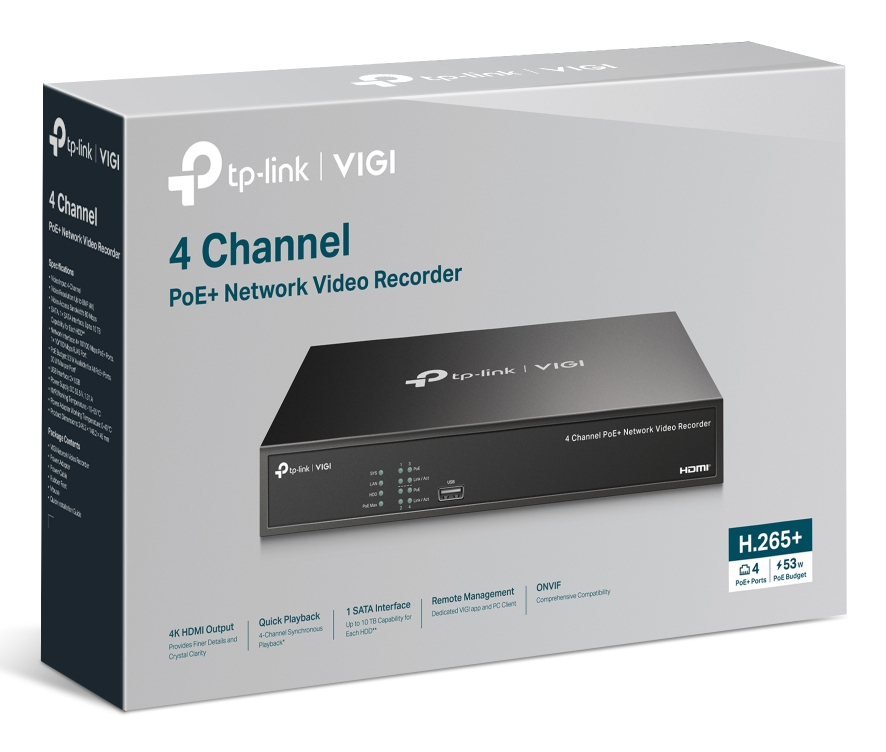

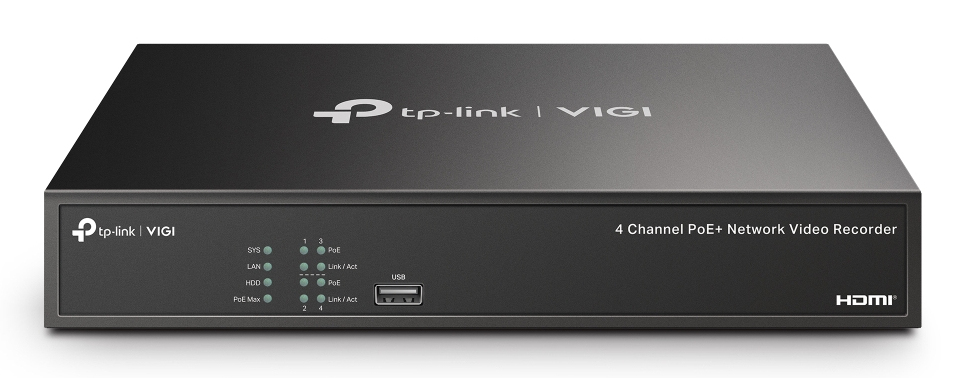

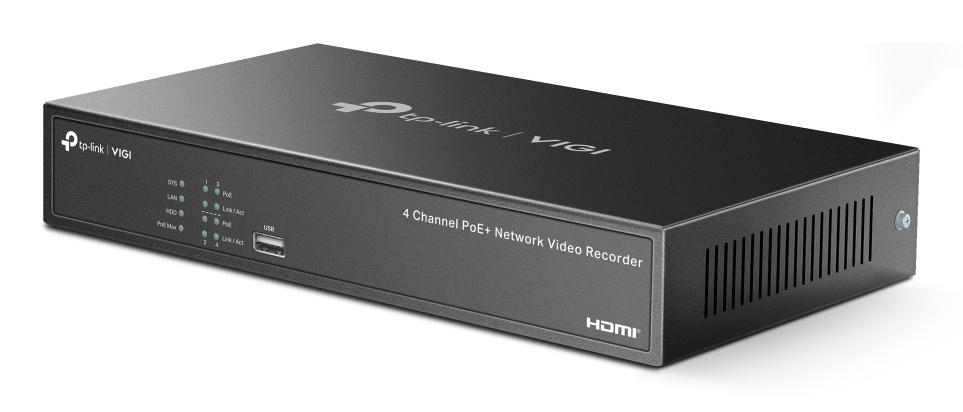

TP-Link VIGI NVR1004H-4P-2TB Black
TP-Link

VIGI NVR1004H-4P-2TB Black

Model NVR1004H-4P-2TBPart no. VIGI NVR1004H-4P-2TBEAN 840030712258

35 specifications
  • Storage2 TB
  • ColourBlack
  • Video input channels4 channels
  • Wi-FiNo
  • Number of HDDs installed1
  • LED indicatorsYes
See all specifications

Overview

Storage
2 TB
Colour
Black
Video input channels
4 channels
Wi-Fi
No
Number of HDDs installed
1
LED indicators
Yes
Brand
TP-Link
Model
NVR1004H-4P-2TB
Part number
VIGI NVR1004H-4P-2TB
EAN / UPC
840030712258, 4895252507171
Also known as
TP-Link VIGI NVR1004H-4P-2TB Black

Specifications

35 specifications in 8 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p, 2160p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Resolution at capture speed1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Video formats supportedH.264, H.264+, H.265, H.265+
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed1
HDD capacity2 TB
Number of HDDs supported1
Maximum storage capacity10 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
Supported network protocolsTCP/IP, DHCP, DNS, NTP, UPnP

Features

LED indicatorsYes
Product colourBlack

Power

Power consumption (typical)4.25 W
Output current1.31 A
Output voltage53.5 V
Total Power over Ethernet (PoE) budget53 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C

Weight & dimensions

Width246.2 mm
Depth148.2 mm
Height45 mm
