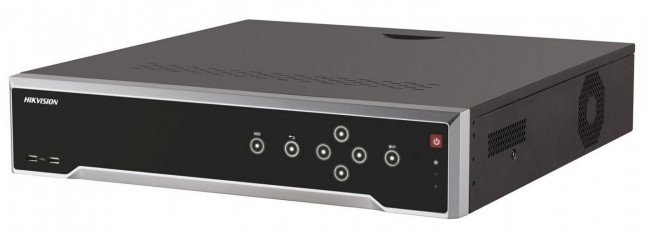

DS-7708NI-I4/8P 1.5U Black
Model DS-7708NI-I4/8PPart no. 303602972 + 4X ST1000VX005
35 specifications
- Storage1 TB
- Weight5 kg
- ColourBlack
- Video input channels8 channels
- Wi-FiNo
- Number of HDDs installed4
Overview
- Storage
- 1 TB
- Weight
- 5 kg
- Colour
- Black
- Video input channels
- 8 channels
- Wi-Fi
- No
- Number of HDDs installed
- 4
- Brand
- Seagate
- Category
- Network Video Recorders (NVR)
- Model
- DS-7708NI-I4/8P
- Part numbers
- 303602972 + 4X ST1000VX005, 303602972 + 4X ST2000VX008, 303602972 + 4X ST3000VX010, 303602972 + 4X ST4000VX007
- Also known as
- Seagate DS-7708NI-I4/8P 1.5U Black
Specifications
35 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.265, MPEG4 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 4 |
| HDD capacity | 1 TB |
| Number of HDDs supported | 4 |
| Total installed storage capacity | 4 TB |
| Maximum storage capacity | 24 TB |
| HDD interface | Serial ATA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| BNC audio input | Yes |
| BNC audio output | Yes |
| Line-in | Yes |
| RS-232 interface | Yes |
| RS-485 ports | 1 |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1.5U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 390 mm |
| Height | 70 mm |
| Weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
