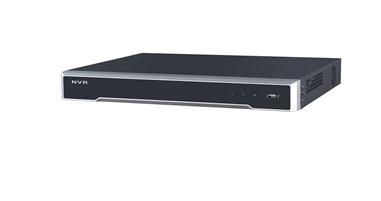

DS-7608NI-I2/8P Black, Silver
Model DS-7608NI-I2/8PPart no. 303602924 + 2X ST4000VX007
37 specifications
- Storage4 TB
- Weight3 kg
- ColourBlack, Silver
- Video input channels8 channels
- Wi-FiNo
- Number of HDDs installed2
Overview
- Storage
- 4 TB
- Weight
- 3 kg
- Colour
- Black, Silver
- Video input channels
- 8 channels
- Wi-Fi
- No
- Number of HDDs installed
- 2
- Brand
- Seagate
- Category
- Network Video Recorders (NVR)
- Model
- DS-7608NI-I2/8P
- Part numbers
- 303602924 + 2X ST4000VX007, 303602924 + 2X ST6000VX0023
- Also known as
- Seagate DS-7608NI-I2/8P Black, Silver
Specifications
37 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Alarm input channels | 4 |
| Alarm output channels | 1 |
| Maximum resolution | 3840 x 2160 pixels |
| Resolution at capture speed | 1920x1080@60fps |
| Video formats supported | H.264, H.265, MPEG4 |
| Number of fans | 1 fan(s) |
| Still image resolution(s) | 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 2 |
| HDD capacity | 4 TB |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 8 TB |
| Maximum storage capacity | 12 TB |
| HDD interface | Serial ATA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 9 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| HDMI output | Yes |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-232 interface | Yes |
Features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 290 mm |
| Height | 45 mm |
| Weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
