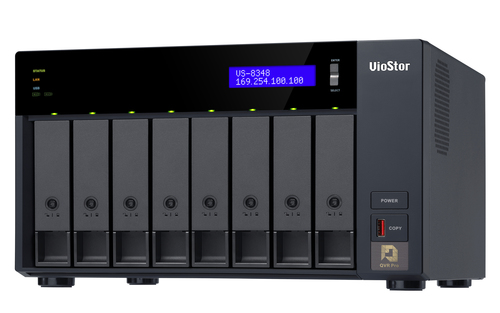

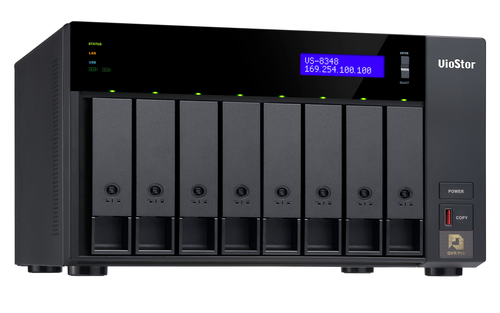

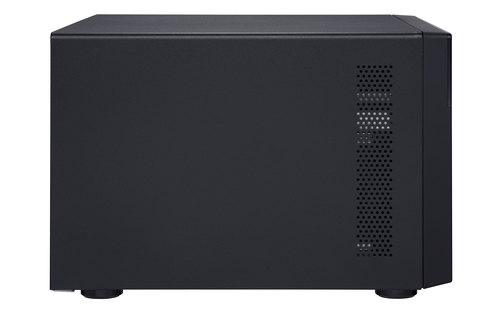

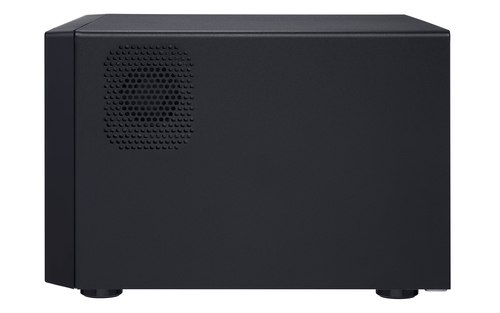

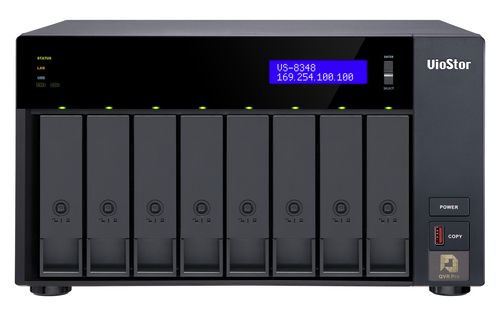

VS-8348 network video recorder Black
Model VS-8348
42 specifications
- Memory16000 MB
- Storage0 GB
- Power250 W
- Weight7.06 kg
- ColourBlack
- Video input channels48 channels
Overview
- Memory
- 16000 MB
- Storage
- 0 GB
- Power
- 250 W
- Weight
- 7.06 kg
- Colour
- Black
- Video input channels
- 48 channels
- Brand
- QNAP
- Category
- Network Video Recorders (NVR)
- Model
- VS-8348
- Part number
- VS-8348
- Also known as
- QNAP VS-8348 network video recorder Black
Specifications
42 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 48 channels |
| Internal memory | 16000 MB |
| Internal memory type | DDR4 |
| Backup function | Yes |
| DHCP server | Yes |
| Number of fans | 4 fan(s) |
| Snapshot | Yes |
| Syslog | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |

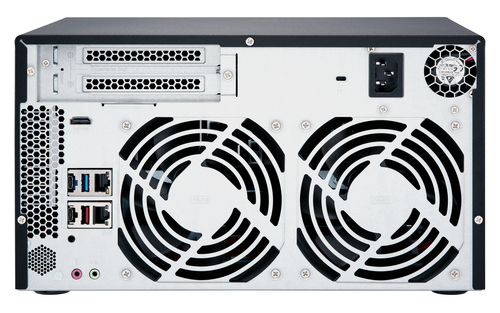

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols | HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP |
Features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Product colour | Black |
| Reset button | Yes |
| Certification | CE, FCC, BSMI, VCCI |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 6 |
| Processor frequency | 1.7 GHz |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power | 250 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 329.3 mm |
| Depth | 279.6 mm |
| Height | 188.2 mm |
| Weight | 7.06 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
