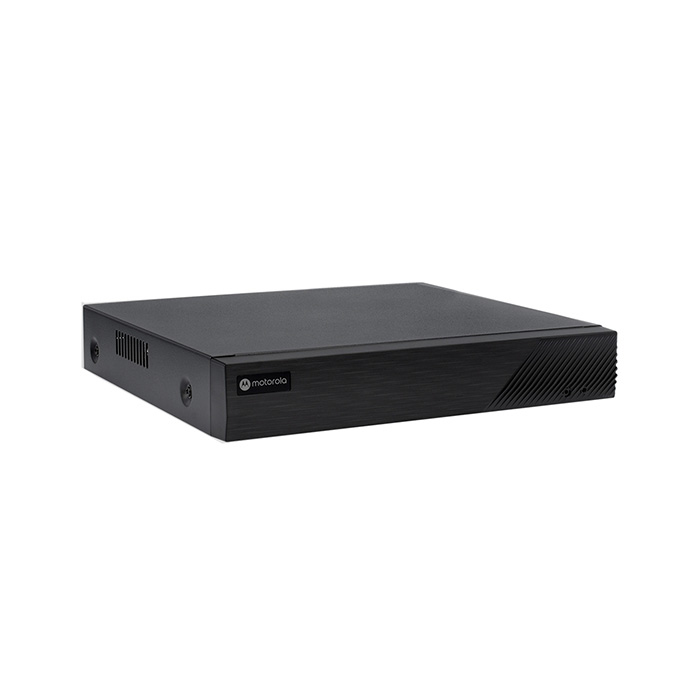

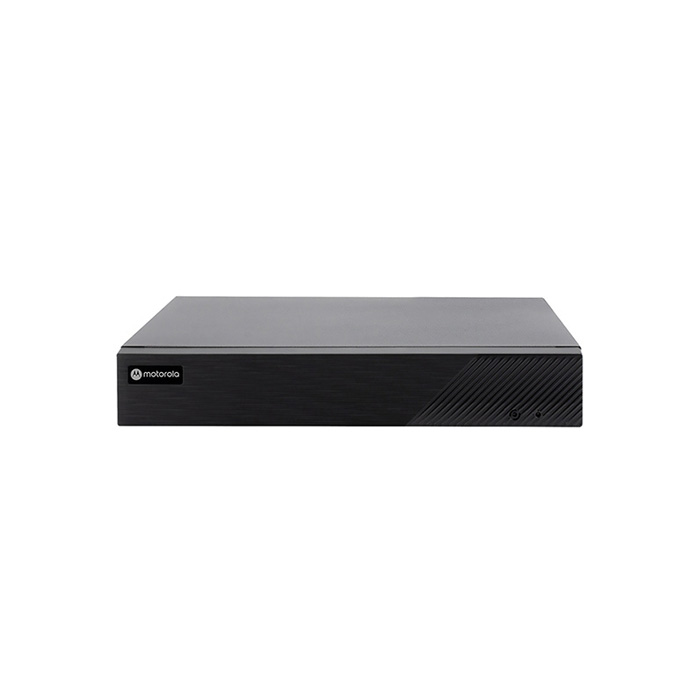

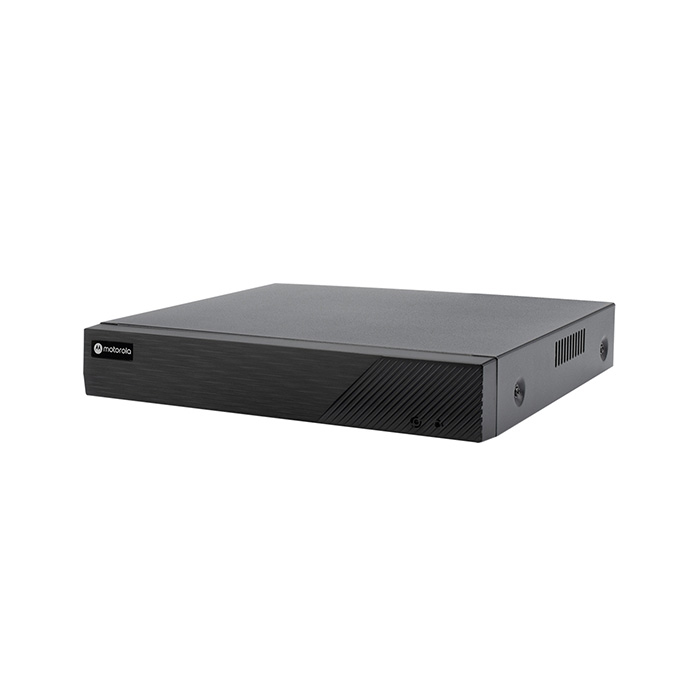

MTR08IPOE network video recorder
Model MTR08IPOE
39 specifications
- Storage0 GB
- OSEmbedded LINUX
- Video input channels8 channels
- Wi-FiNo
- Number of HDDs installed0
- Ethernet LAN (RJ-45) ports9
Overview
- Storage
- 0 GB
- OS
- Embedded LINUX
- Video input channels
- 8 channels
- Wi-Fi
- No
- Number of HDDs installed
- 0
- Ethernet LAN (RJ-45) ports
- 9
- Brand
- Motorola
- Category
- Network Video Recorders (NVR)
- Model
- MTR08IPOE
- Part number
- MTR08IPOE
- Also known as
- Motorola MTR08IPOE network video recorder
Specifications
39 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Number of simultaneously playbacked channels | 8 channels |
| Supported resolutions | 5MP / 4MP / 3MP /1080p / 960p / 720p |
| Video motion detection | Yes |
| Video formats supported | H.264, H.265 |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
| Maximum frame rate | 30 fps |
| Playback modes | Digital zoom, Forward, Pause, Play, Stop |
| Recording modes | Manual, Schedule |
| Audio system | 2-way |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 8 TB |
| HDD interface | SATA |

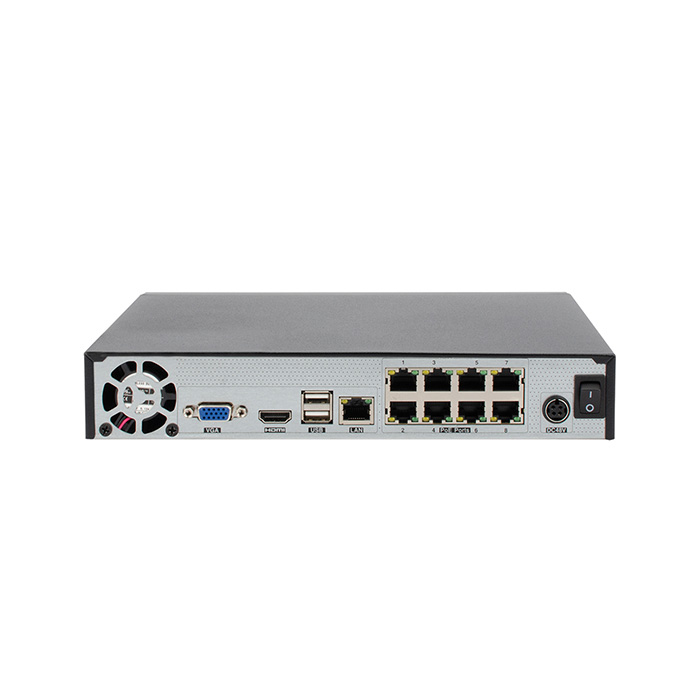

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 9 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
| Supported network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
Features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
| AC input voltage | 100 - 240 V |
| Output current | 2.5 A |
| Output voltage | 48 V |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Browser supported | Internet Explorer 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 233 mm |
| Height | 42 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
