NVR-1332 4-Bay Network Video recoder, H265
Model NVR-1332EAN 4015867201848
34 specifications
- OSEmbedded LINUX
- ColourBlack, Silver
- Video input channels32 channels
- Wi-FiNo
- Number of HDDs installed0
- Ethernet LAN (RJ-45) ports2
Overview
- OS
- Embedded LINUX
- Colour
- Black, Silver
- Video input channels
- 32 channels
- Wi-Fi
- No
- Number of HDDs installed
- 0
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- LevelOne
- Category
- Network Video Recorders (NVR)
- Model
- NVR-1332
- Part number
- NVR-1332
- EAN / UPC
- 4015867201848
- Also known as
- LevelOne NVR-1332 4-Bay Network Video recoder, H265
Specifications
34 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 32 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Operating system installed | Embedded LINUX |
| Analog signal format system | NTSC, PAL |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 256 Mbit/s |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 32 TB |
| HDD interface | SATA, SATA II, SATA III |

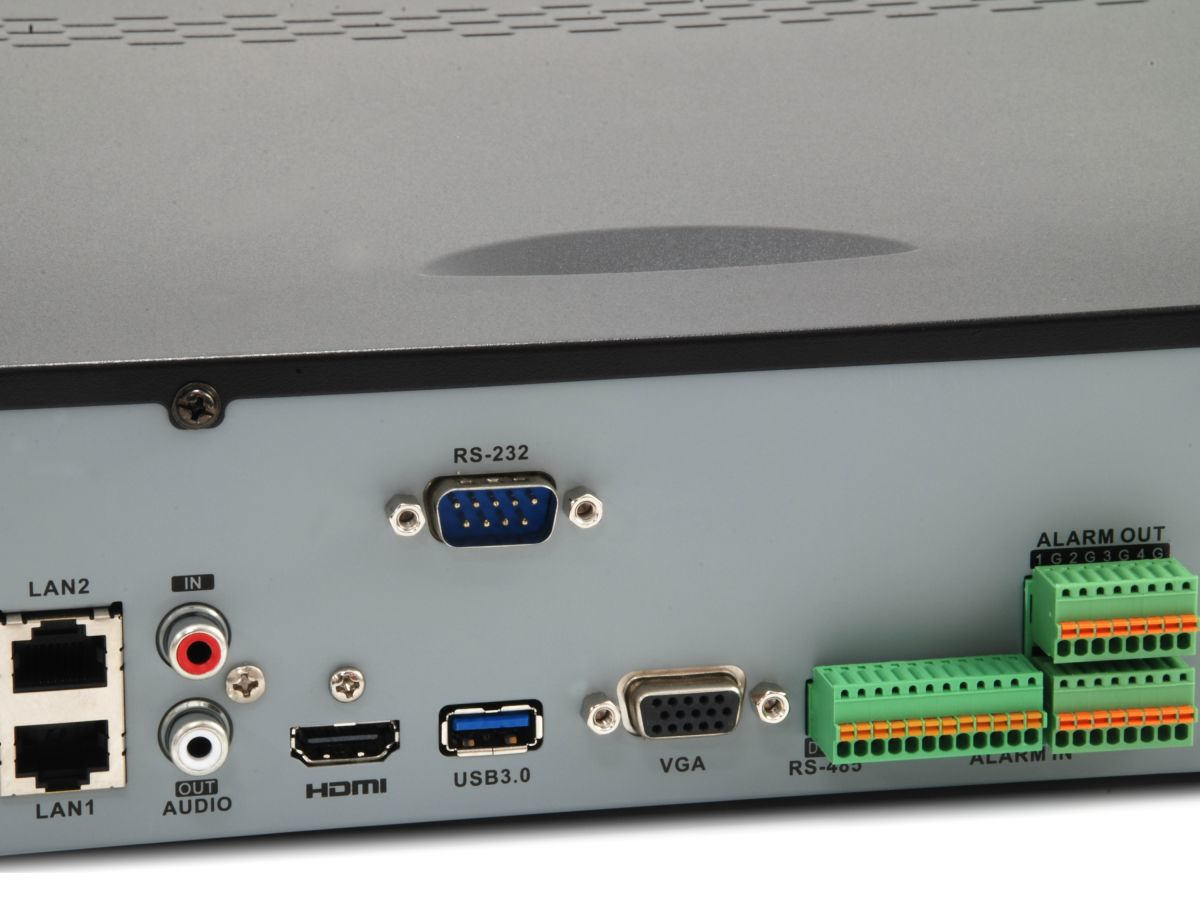

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Power |
| On/off switch | Yes |
| Product colour | Black, Silver |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 390 mm |
| Depth | 70 mm |
| Height | 445 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
