LevelOne GEMINI 16-Channel Network Video Recorder, H.265
LevelOne

GEMINI 16-Channel Network Video Recorder, H.265

Model NVR-1316EAN 4015867199121

51 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight5 kg
  • ColourBlack
  • Video input channels16 channels
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
5 kg
Colour
Black
Video input channels
16 channels
Number of HDDs installed
0
Brand
LevelOne
Model
NVR-1316
Part number
NVR-1316
EAN / UPC
4015867199121, 4015867238257
Also known as
LevelOne GEMINI 16-Channel Network Video Recorder, H.265

Specifications

51 specifications in 10 groups

Performance

Video input channels16 channels
Alarm input channels4
Alarm output channels8
Maximum resolution3840 x 2160 pixels
Number of users128 user(s)
Video formats supportedH.264, H.264+, H.265, MPEG4
Operating system installedEmbedded LINUX
Throughput data rate256 Mbit/s

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity24 TB
HDD size3.5"

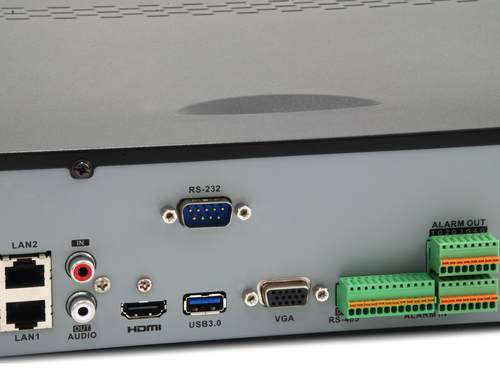

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
RS-232 interfaceYes
RS-485 ports1
Supported network protocolsTCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP

Features

LED indicatorsPower
On/off switchYes
Product colourBlack
Country of originChina
CertificationCE, FCC, uL

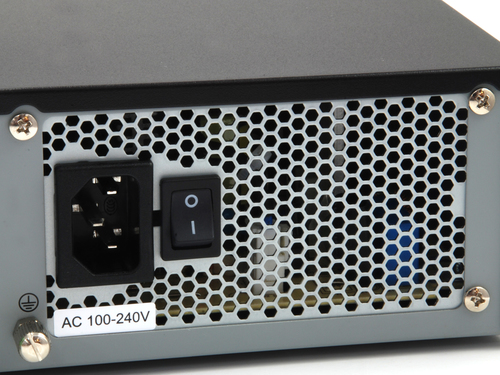

Power

Power consumption (typical)20 W
AC input voltage100 - 240 V

System requirements

Browser supportedInternet Explorer 9+

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width390 mm
Depth70 mm
Height445 mm
Weight5 kg
Package width502 mm
Package depth158 mm
Package height495 mm
Package typeBox
Package weight5.5 kg

Packaging content

CD manualYes
Cables includedAC

Logistics data

Master (outer) case width523 mm
Master (outer) case length340 mm
Master (outer) case height522 mm
Master (outer) case gross weight6 kg
Products per master (outer) case1 pc(s)
