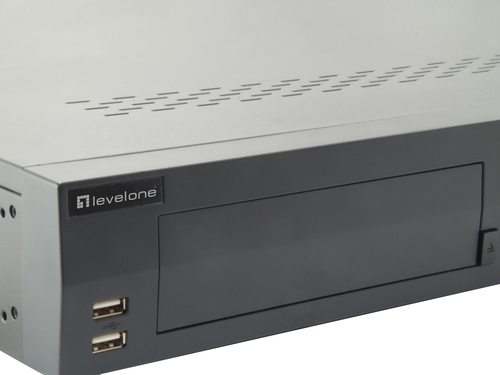

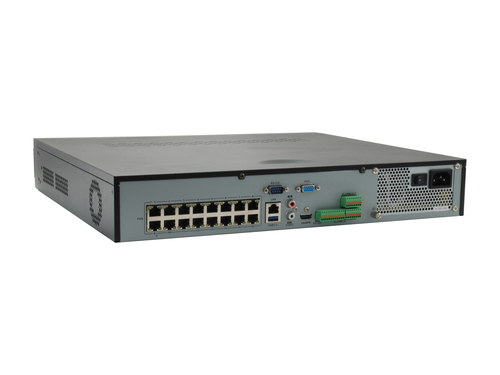

LevelOne GEMINI 32-Channel Network Video Recorder

LevelOne GEMINI 32-Channel Network Video Recorder

Model NVR-0437EAN 4015867201800

58 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight3 kg
  • ColourBlack
  • Video input channels32 channels
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
3 kg
Colour
Black
Video input channels
32 channels
Number of HDDs installed
0
Brand
LevelOne
Model
NVR-0437
Part number
NVR-0437
EAN / UPC
4015867201800
Also known as
LevelOne GEMINI 32-Channel Network Video Recorder

Specifications

58 specifications in 11 groups

Performance

Video input channels32 channels
Alarm input channels4
Alarm output channels16
Number of users128 user(s)
Video formats supportedH.264, H.264+
Operating system installedEmbedded LINUX
PTZ controlYes
PTZ modesPreset point, Preset sequence
Throughput data rate160 Mbit/s

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity24 TB
HDD interfaceSerial ATA
HDD size3.5"

Ports & interfaces

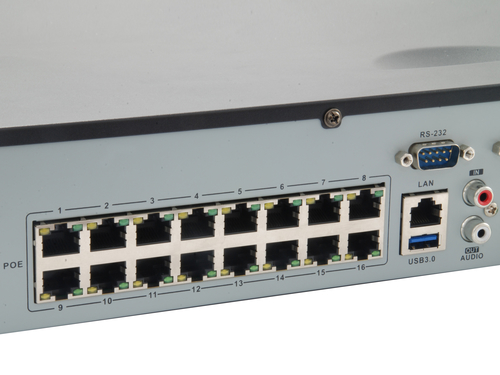

Ethernet LAN (RJ-45) ports18
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16

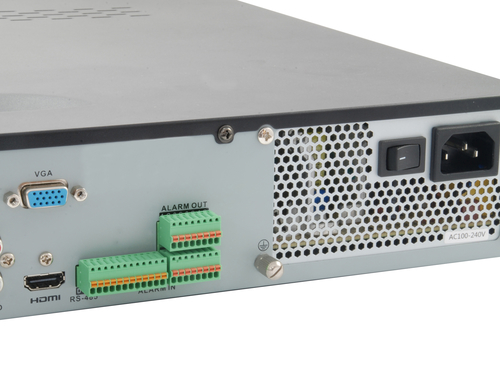

HDMI outputYes
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
RS-232 interfaceYes
RS-485 ports1
Networking standardsIEEE 802.3af
Supported network protocolsTCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP

Features

Compatible productsOnvif Camera

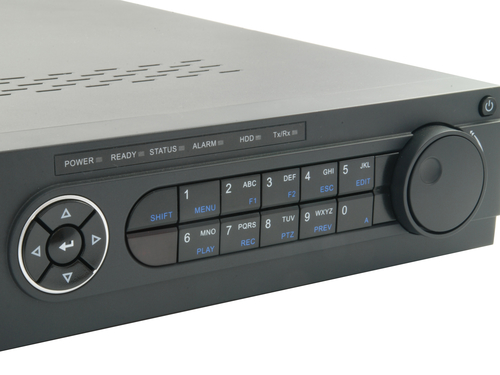

LED indicatorsAlarm, HDD, Power, Ready, Reset
On/off switchYes
Product colourBlack
Country of originChina
CertificationCE, FCC, uL

Power

Power consumption (typical)20 W
AC input voltage100 - 240 V

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedInternet Explorer 9+

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width390 mm
Depth440 mm
Height69 mm
Weight3 kg
Package width180 mm
Package depth510 mm
Package height520 mm
Package typeBox
Package weight4.2 kg

Packaging content

CD manualYes
Cables includedAC, LAN (RJ-45)

Logistics data

Master (outer) case width180 mm
Master (outer) case length510 mm
Master (outer) case height520 mm
Master (outer) case gross weight4.2 kg
Products per master (outer) case1 pc(s)
