LevelOne NVR-0411 network video recorder Black, Grey
LevelOne

NVR-0411 network video recorder Black, Grey

Model NVR-0411EAN 4015867236802

48 specifications
  • Weight5 kg
  • ColourBlack, Grey
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs installed0
  • Ethernet LAN (RJ-45) ports17
See all specifications

Overview

Weight
5 kg
Colour
Black, Grey
Video input channels
32 channels
Wi-Fi
No
Number of HDDs installed
0
Ethernet LAN (RJ-45) ports
17
Brand
LevelOne
Model
NVR-0411
Part number
NVR-0411
EAN / UPC
4015867236802
Also known as
LevelOne NVR-0411 network video recorder Black, Grey

Specifications

48 specifications in 11 groups

Performance

Video input channels32 channels
Number of simultaneously playbacked channels256 channels
Maximum resolution4096 x 2160 pixels
Supported resolutions2MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC
Video motion detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+
Input bandwidth256 Mbit/s
Maximum frame rate30 fps
Output bandwidth160 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported4
Maximum storage capacity10 TB
HDD interfaceSATA
RAID supportNo

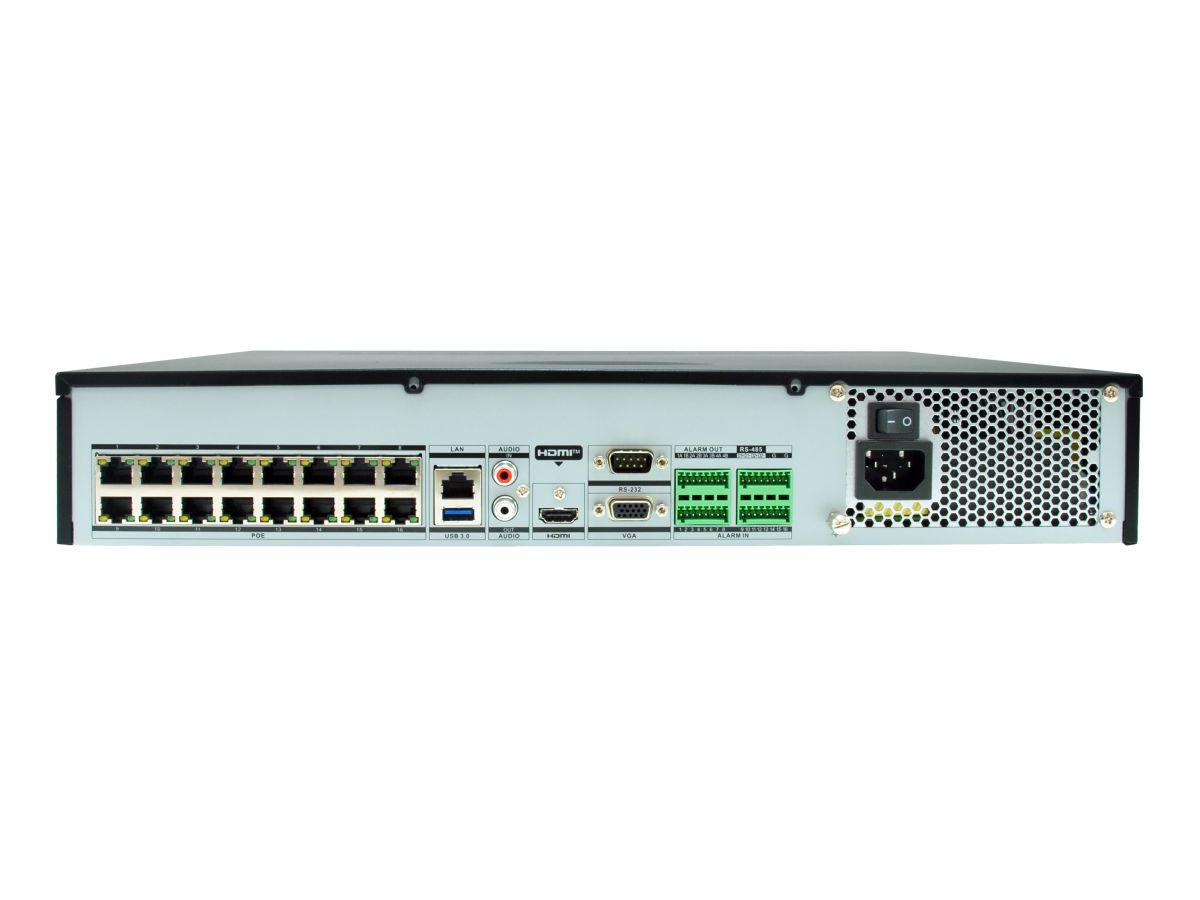

Ports & interfaces

Ethernet LAN (RJ-45) ports17
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes

Features

Rack mountingYes
LED indicatorsYes
On/off switchYes
Product colourBlack, Grey

Power

Power consumption (max)200 W
Power consumption (typical)20 W
Power over Ethernet (PoE) power per port16 W

System requirements

Browser supportedIE11, Chrome V57, Firefox V52, Safari V12, Edge V889

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 95%

Technical details

Compliance certificatesBIS, CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RCM, REACH, RoHS, UKCA, UL, WEEE

Weight & dimensions

Width445 mm
Depth400 mm
Height75 mm
Weight5 kg
Package typeBox

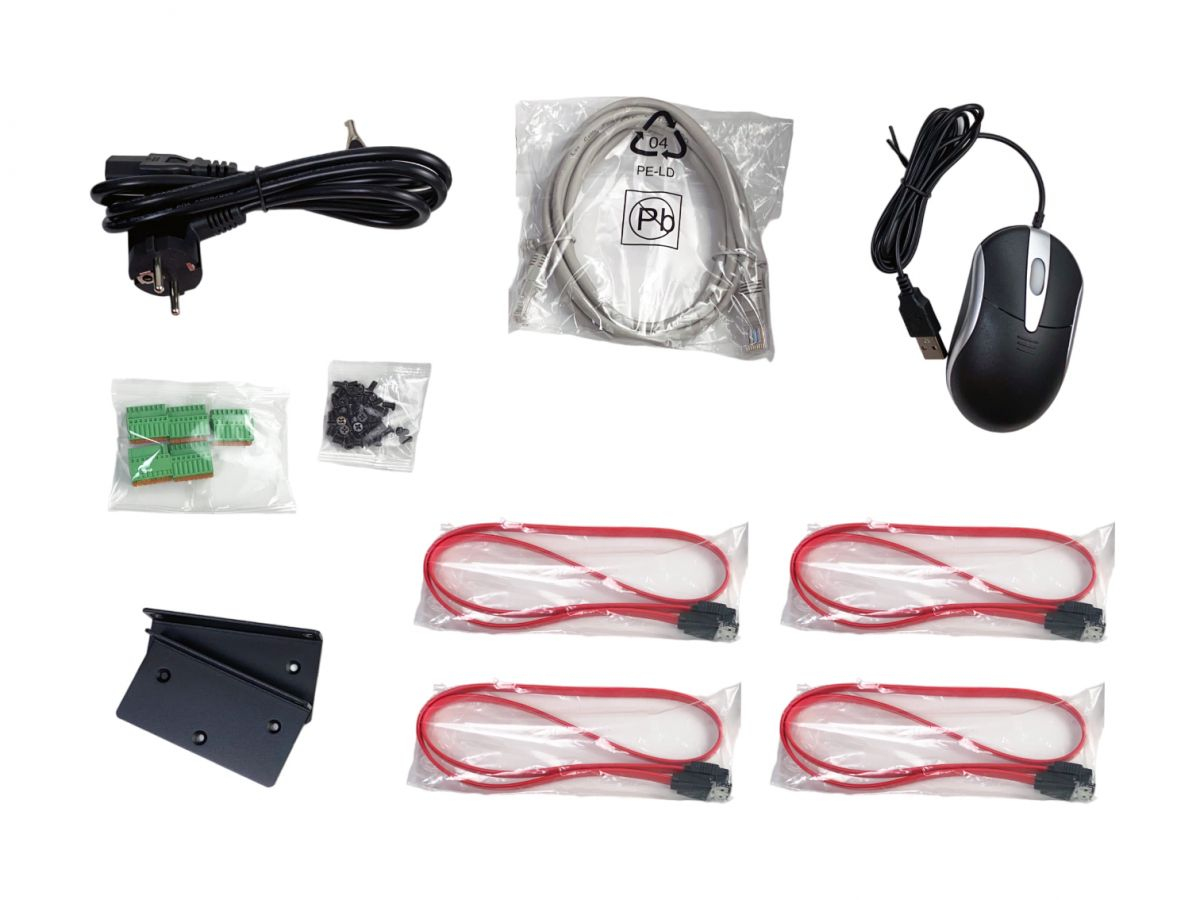

Packaging content

Cables includedAC, SATA
Quick installation guideYes
