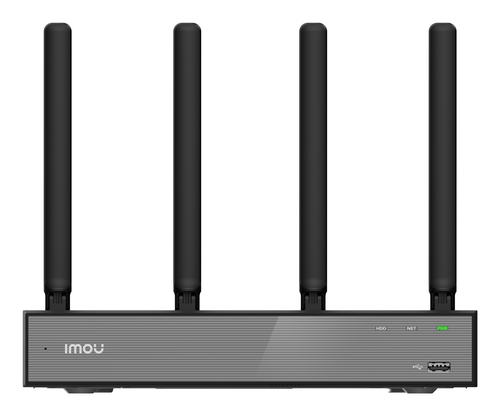

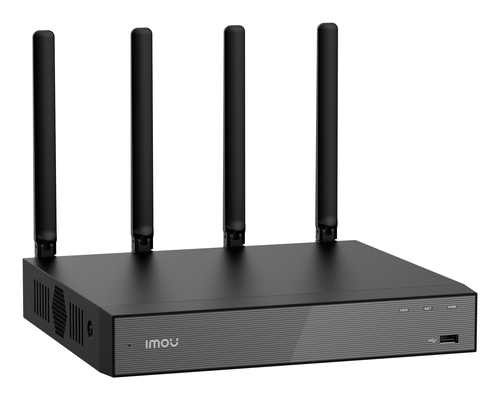

N118W Black
Model N118WPart no. NVR-N118W-8A0E-P-IMOUEAN 6937479640120
41 specifications
- Power9 W
- Weight890 g
- ColourBlack
- Video input channels18 channels
- Wi-FiYes
- Number of HDDs supported1
Overview
- Power
- 9 W
- Weight
- 890 g
- Colour
- Black
- Video input channels
- 18 channels
- Wi-Fi
- Yes
- Number of HDDs supported
- 1
- Brand
- Imou
- Category
- Network Video Recorders (NVR)
- Model
- N118W
- Part number
- NVR-N118W-8A0E-P-IMOU
- EAN / UPC
- 6937479640120
- Also known as
- Imou N118W Black
Specifications
41 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 18 channels |
| Number of simultaneously playbacked channels | 4 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Two-way talk | Yes |
| Video motion detection | Yes |
| Audio formats supported | AAC |
| Video formats supported | H.264, H.265, MP4 |
| Input bandwidth | 90 Mbit/s |
| Output bandwidth | 90 Mbit/s |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| Maximum storage capacity | 16 TB |
| HDD interface | SATA |

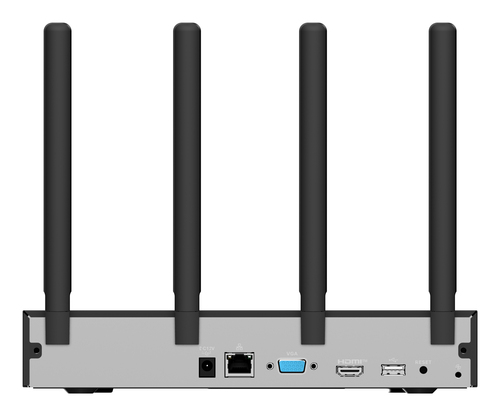

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| LED indicators | HDD, Network, Power |
| Product colour | Black |
| Reset button | Yes |
| Certification | CE |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 19 W |
| Output current | 2 A |
| Output voltage | 12 V |
| Power | 9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 241.5 mm |
| Height | 60.2 mm |
| Weight | 890 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), SATA |
| Quick installation guide | Yes |
