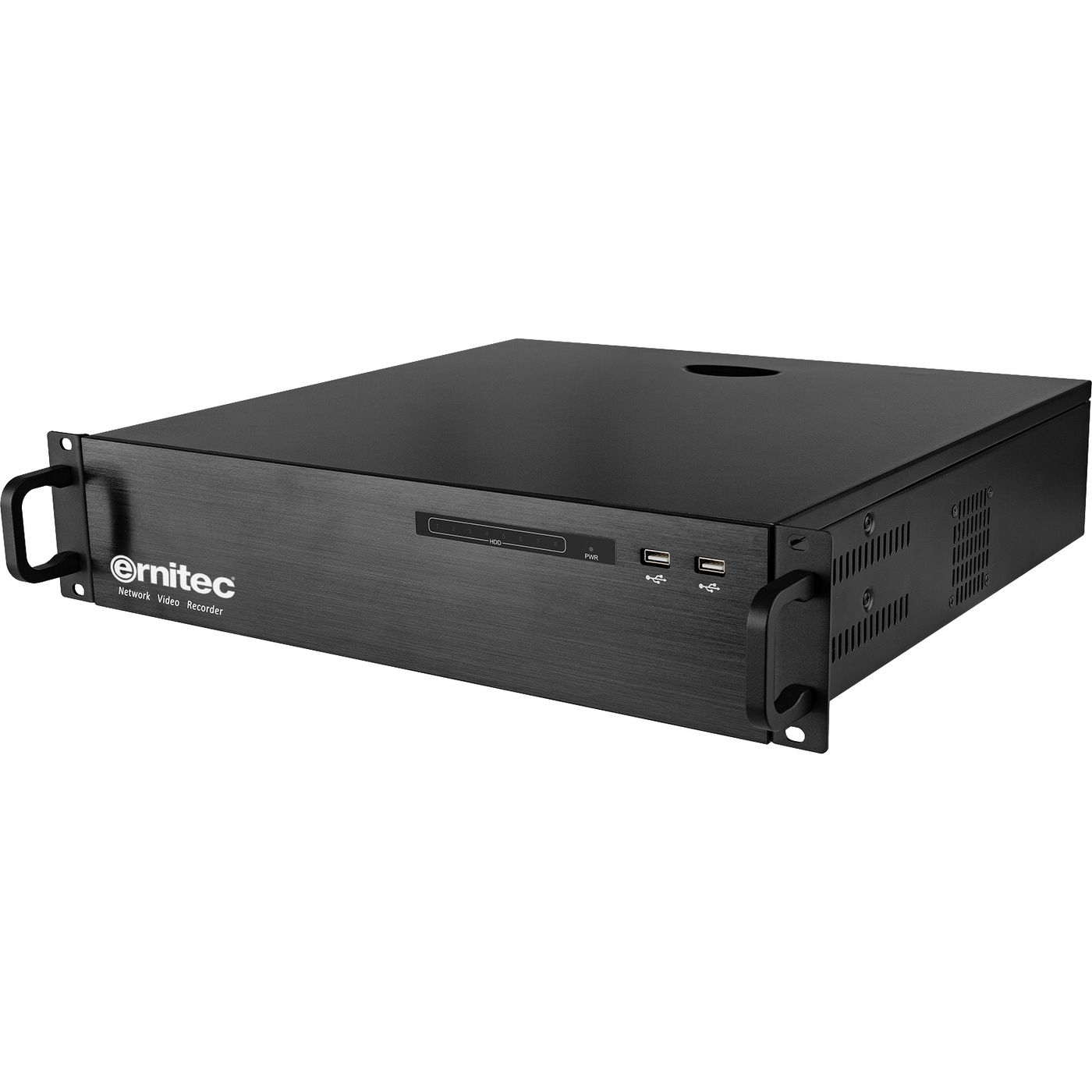

0070-10406 network video recorder 2U Black
Model 0070-10406EAN 5715063144602
52 specifications
- Storage16 TB
- Weight5.6 kg
- ColourBlack
- Video input channels64 channels
- Number of HDDs installed0
- Ethernet LAN (RJ-45) ports2
Overview
- Storage
- 16 TB
- Weight
- 5.6 kg
- Colour
- Black
- Video input channels
- 64 channels
- Number of HDDs installed
- 0
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Ernitec
- Category
- Network Video Recorders (NVR)
- Model
- 0070-10406
- Part number
- 0070-10406
- EAN / UPC
- 5715063144602
- Also known as
- Ernitec 0070-10406 network video recorder 2U Black
Specifications
52 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 6 |
| Number of simultaneously playbacked channels | 64 channels |
| Video recording modes | 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 8 user(s) |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
| Input bandwidth | 400 Mbit/s |
| Output bandwidth | 400 Mbit/s |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 16 TB |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 128 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 8 |
| Audio output | 1 |
| COM ports quantity | 1 |
| Line-in | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| eSATA | Yes |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, FTP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 2U |
| Brand compatibility | Ernitec |
| Compatible products | ONVIF, SDK, CGI |
| On/off switch | Yes |
| Product colour | Black |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 ~ 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 372 mm |
| Depth | 315 mm |
| Height | 47 mm |
| Weight | 5.6 kg |
| Package weight | 7.2 kg |
