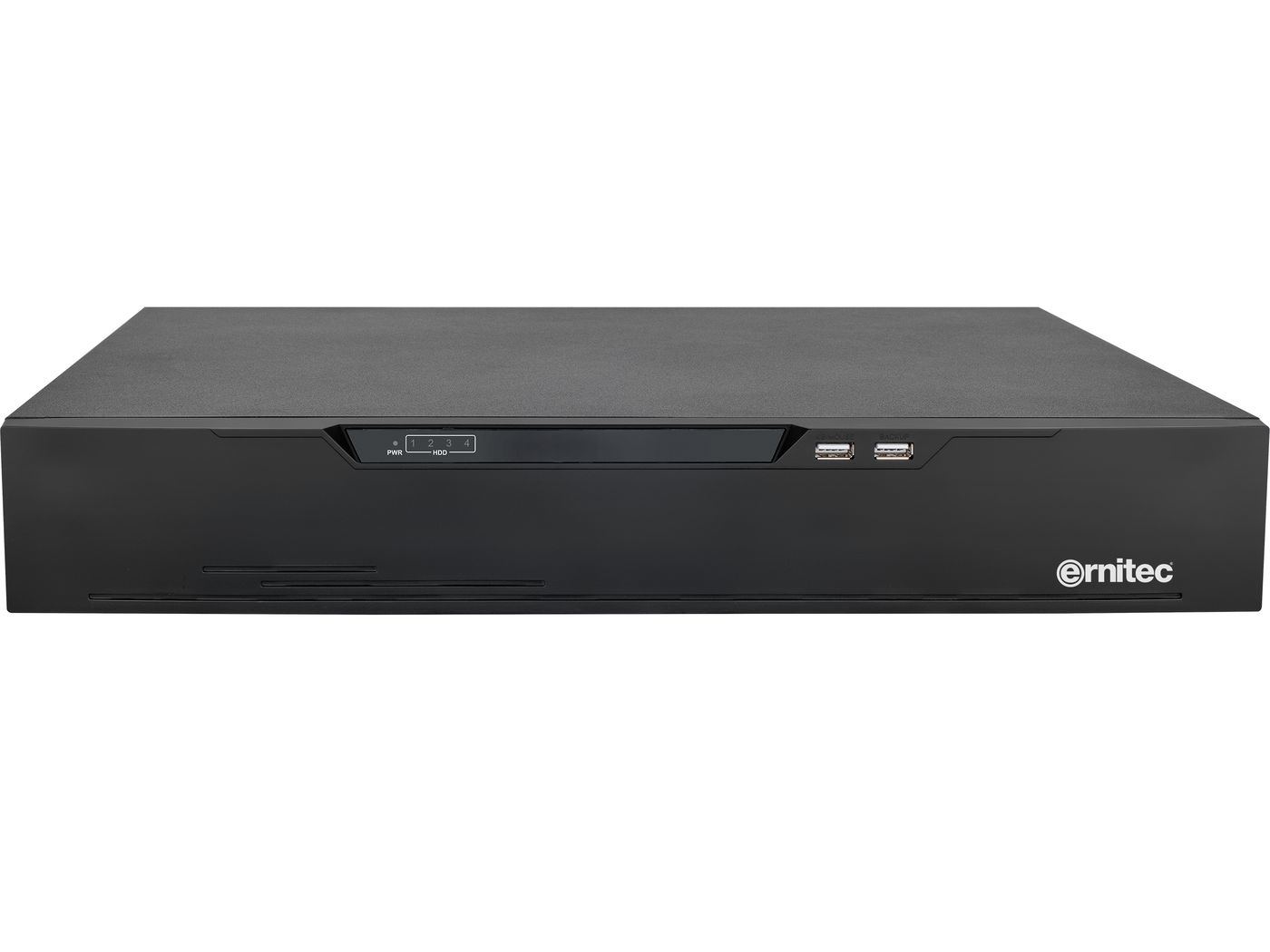

Cygnus 32 channel NVR - 1.5U
Model 0070-10404EAN 5715063097571
52 specifications
- Storage16 TB
- Weight4.65 kg
- ColourBlack
- Video input channels32 channels
- Number of HDDs installed0
- Ethernet LAN (RJ-45) ports2
Overview
- Storage
- 16 TB
- Weight
- 4.65 kg
- Colour
- Black
- Video input channels
- 32 channels
- Number of HDDs installed
- 0
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Ernitec
- Category
- Network Video Recorders (NVR)
- Model
- 0070-10404
- Part number
- 0070-10404
- EAN / UPC
- 5715063097571
- Also known as
- Ernitec Cygnus 32 channel NVR - 1.5U
Specifications
52 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Video recording modes | 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 |
| Number of users | 8 user(s) |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 16 TB |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | No |
| HDMI output | Yes |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 4 |
| Audio output | 1 |
| COM ports quantity | 1 |
| Line-in | Yes |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| eSATA | Yes |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1.5U |
| Brand compatibility | Ernitec |
| Compatible products | ONVIF, SDK, CGI |
| On/off switch | Yes |
| Product colour | Black |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 ~ 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 373 mm |
| Height | 70 mm |
| Weight | 4.65 kg |
| Package weight | 6 kg |
