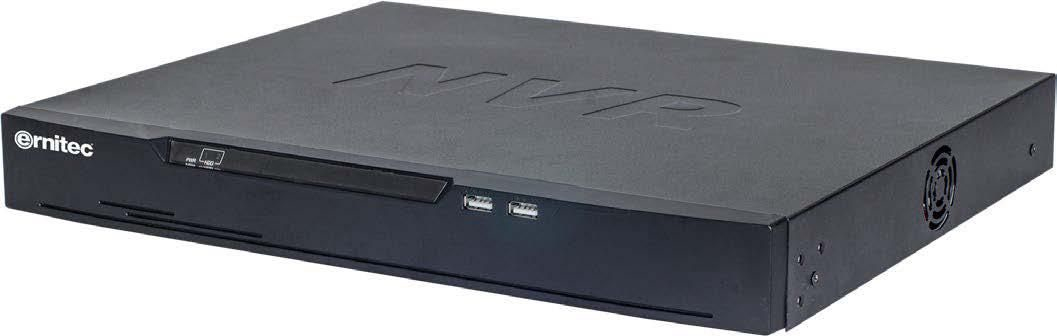

Cygnus 16 channel PoE NVR
Model 0070-10403EAN 5715063061657
38 specifications
- Storage12 TB
- Weight2.27 kg
- ColourBlack
- Video input channels16 channels
- Number of HDDs installed0
- Ethernet LAN (RJ-45) ports1
Overview
- Storage
- 12 TB
- Weight
- 2.27 kg
- Colour
- Black
- Video input channels
- 16 channels
- Number of HDDs installed
- 0
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Ernitec
- Category
- Network Video Recorders (NVR)
- Model
- 0070-10403
- Part number
- 0070-10403
- EAN / UPC
- 5715063061657, 5715063217986
- Also known as
- Ernitec Cygnus 16 channel PoE NVR
Specifications
38 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 8 |
| Alarm output channels | 2 |
| Number of simultaneously playbacked channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 8 user(s) |
| Video motion detection | Yes |
| Video loss detection | Yes |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 12 TB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 24 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Internal SATA ports quantity | 2 |
| Audio output | 1 |
| Line-in | Yes |
Features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Product colour | Black |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 15 W |
| AC input voltage | 100 ~ 240 V |
| Total Power over Ethernet (PoE) budget | 128 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 372 mm |
| Depth | 315 mm |
| Height | 47 mm |
| Weight | 2.27 kg |
| Package weight | 4 kg |
