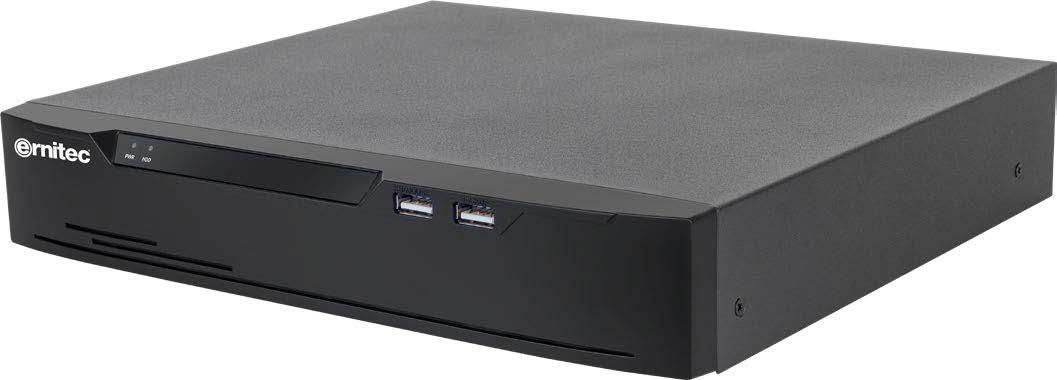

Cygnus 4 channel PoE NVR
Model 0070-10400EAN 5715063061633
34 specifications
- Storage12 TB
- Weight2 kg
- ColourBlack
- Video input channels4 channels
- Ethernet LAN (RJ-45) ports1
- Rack mountingNo
Overview
- Storage
- 12 TB
- Weight
- 2 kg
- Colour
- Black
- Video input channels
- 4 channels
- Ethernet LAN (RJ-45) ports
- 1
- Rack mounting
- No
- Brand
- Ernitec
- Category
- Network Video Recorders (NVR)
- Model
- 0070-10400
- Part number
- 0070-10400
- EAN / UPC
- 5715063061633
- Also known as
- Ernitec Cygnus 4 channel PoE NVR
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| Alarm input channels | 4 |
| Alarm output channels | 1 |
| Number of simultaneously playbacked channels | 4 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 8 user(s) |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Maximum frame rate | 30 fps |
Hard drive
| Specification | Value |
|---|---|
| HDD capacity | 12 TB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 12 TB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| VGA (D-Sub) output ports | 1 |
| Internal SATA ports quantity | 1 |
| Audio output | 1 |
| Line-in | Yes |
| Networking standards | IEEE 802.3af |
Features
| Specification | Value |
|---|---|
| Rack mounting | No |
| Brand compatibility | Ernitec |
| Compatible products | ONVIF, SDK, CGI |
| LED indicators | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Total Power over Ethernet (PoE) budget | 32 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
| Package weight | 3 kg |
