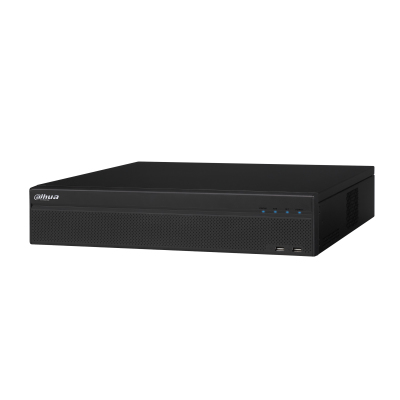

Dahua Technology Pro XVR7816S network video recorder 2U Black
Dahua Technology

Pro XVR7816S network video recorder 2U Black

Model XVR7816S

58 specifications
  • OSEmbedded LINUX
  • Weight6.5 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
6.5 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
XVR7816S
Part number
XVR7816S
Also known as
Dahua Technology Pro XVR7816S network video recorder 2U Black

Specifications

58 specifications in 9 groups

Performance

Video input channels16 channels
Alarm input channels16
Video recording modes720p, 1080p
Maximum resolution1920 x 1080 pixels
Supported resolutions1920×1080, 1280×1024, 1280×720, 1024×768
Bit rate6144 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Stop
SnapshotYes
Recording modesManual, Schedule, Stop
Recording time60 min

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported8
Maximum storage capacity8 TB
HDD interfaceSerial ATA

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates1000 Mbit/s
BNC video inputYes
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
BNC audio inputYes
eSATA ports quantity1
BNC audio outputYes
Internal SATA ports quantity8
Microphone inYes
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search

Features

Rack mountingYes
Rack capacity2U
Brand compatibilityAny brand
Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (typical)35 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width440 mm
Depth455 mm
Height95 mm
Weight6.5 kg
