Dahua Technology Pro XVR7204AN network video recorder 1U Black
Dahua Technology

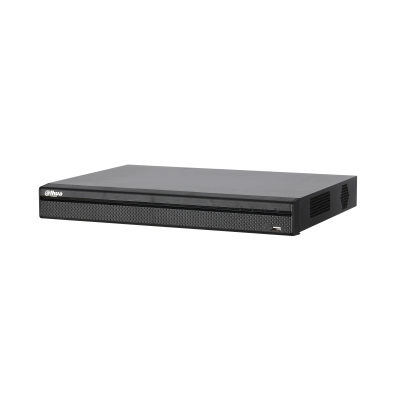

Pro XVR7204AN network video recorder 1U Black

Model XVR7204AN

51 specifications
  • OSEmbedded LINUX
  • Weight2.35 kg
  • ColourBlack
  • Video input channels4 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
2.35 kg
Colour
Black
Video input channels
4 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
XVR7204AN
Part number
XVR7204AN
Also known as
Dahua Technology Pro XVR7204AN network video recorder 1U Black

Specifications

51 specifications in 9 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Maximum resolution1920 x 1080 pixels
Supported resolutions1920×1080, 1280×1024, 1280×720, 1024×768
Bit rate6144 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Stop
SnapshotYes
Recording modesManual, Schedule, Stop
Recording time60 min

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported2
Maximum storage capacity8 TB
HDD interfaceSerial ATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
Internal SATA ports quantity2
RS-485 ports1
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search

Features

Rack mountingYes
Rack capacity1U
Brand compatibilityAny brand
Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (typical)15 W
AC input voltage12 V
Output current4 A

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width375 mm
Depth287 mm
Height53 mm
Weight2.35 kg
