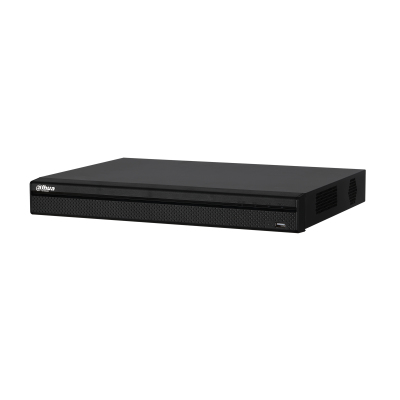

Dahua Technology Lite XVR5216AN-S2 network video recorder 1U Black
Dahua Technology

Lite XVR5216AN-S2 network video recorder 1U Black

Model XVR5216AN-S2

60 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight2.35 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
2.35 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Brand
Dahua Technology
Model
XVR5216AN-S2
Part number
XVR5216AN-S2
Also known as
Dahua Technology Lite XVR5216AN-S2 network video recorder 1U Black

Specifications

60 specifications in 10 groups

Performance

Video input channels16 channels
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution1920 x 1080 pixels
Supported resolutions1920×1080, 1280×1024, 1280×720, 1024×768
Bit rate6144 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback modesBackup selection, Digital zoom, Forward, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Stop
Recording modesManual, Schedule, Stop
Recording time60 min

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity8 TB
HDD interfaceSerial ATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000 Mbit/s
Power over Ethernet (PoE)No
Power over Ethernet (PoE) ports quantity0
Ethernet WANNo
BNC video inputYes
HDMI outputYes
HDMI ports quantity1
DVI ports quantity0
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
Internal SATA ports quantity2
RS-485 ports1
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Searc

Features

Rack mountingYes
Rack capacity1U
Brand compatibilityAny brand
Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (typical)15 W
AC input voltage12 V
Output current4 A

System requirements

Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width375 mm
Depth287 mm
Height53 mm
Weight2.35 kg
