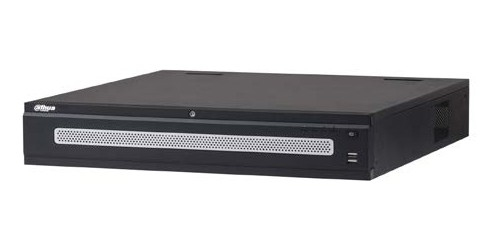

NVR6A08-128-4KS2, 2TB
Model NVR6A08-128-4KS2, 2TBPart no. DHI-NVR6A08-128-4KS2 2TB
37 specifications
- Weight9 kg
- ColourBlack
- Video input channels128 channels
- Number of HDDs supported8
- Ethernet LAN (RJ-45) ports2
- Rack mountingYes
Overview
- Weight
- 9 kg
- Colour
- Black
- Video input channels
- 128 channels
- Number of HDDs supported
- 8
- Ethernet LAN (RJ-45) ports
- 2
- Rack mounting
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR6A08-128-4KS2, 2TB
- Part number
- DHI-NVR6A08-128-4KS2 2TB
- Also known as
- Dahua Technology NVR6A08-128-4KS2, 2TB Black
Specifications
37 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 128 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 128 user(s) |
| Two-way talk | Yes |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 8 |
| Total installed storage capacity | 2 TB |
| Maximum storage capacity | 48 TB |
| HDD interface | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 1 |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| eSATA | Yes |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 454.9 mm |
| Height | 90.4 mm |
| Weight | 9 kg |
| Package weight | 10.5 kg |
