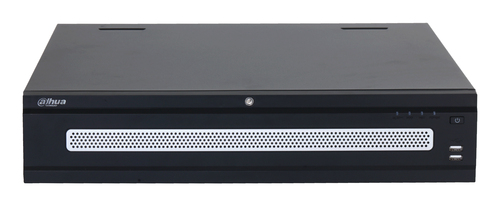

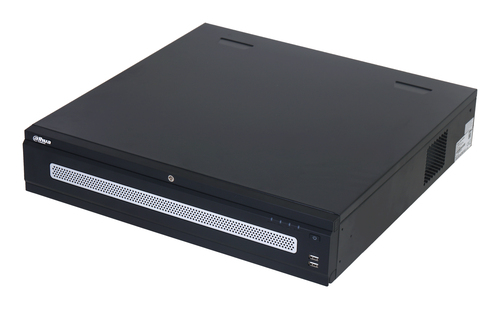

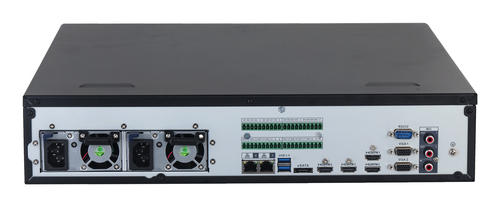

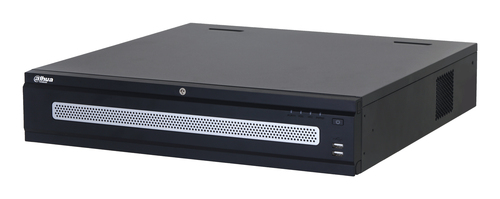

Dahua Technology WizMind NVR608RH-64-XI 2U Black
Dahua Technology

WizMind NVR608RH-64-XI 2U Black

Model NVR608RH-64-XIPart no. DHI-NVR608RH-64-XIEAN 6923172546517

46 specifications
  • Power18 W
  • Weight8.14 kg
  • ColourBlack
  • Video input channels64 channels
  • Wi-FiNo
  • Maximum storage capacity20 TB
See all specifications

Overview

Power
18 W
Weight
8.14 kg
Colour
Black
Video input channels
64 channels
Wi-Fi
No
Maximum storage capacity
20 TB
Brand
Dahua Technology
Model
NVR608RH-64-XI
Part number
DHI-NVR608RH-64-XI
EAN / UPC
6923172546517
Also known as
Dahua Technology WizMind NVR608RH-64-XI 2U Black

Specifications

46 specifications in 10 groups

Performance

Video input channels64 channels
Alarm input channels16
Alarm output channels8
Number of simultaneously playbacked channels32 channels
Maximum resolution3840 x 2160 pixels
Supported resolutions2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (simultaneously outputs video sources for all the
Audio formats supportedG.711, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Backup functionYes

Wireless LAN features

Wi-FiNo

Hard drive

Maximum storage capacity20 TB
HDD interfaceSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports2
HDMI outputYes
HDMI ports quantity4
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
eSATA ports quantity1
RS-232 ports1
RS-485 ports1
eSATAYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Features

Rack mountingYes
Rack capacity2U
Product colourBlack

Display

Built-in displayNo

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power18 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome, IE 9 or later, Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%

Weight & dimensions

Width444 mm
Depth476 mm
Height95 mm
Weight8.14 kg
Package width571 mm
Package depth618 mm
Package height219 mm
Package weight12.2 kg
