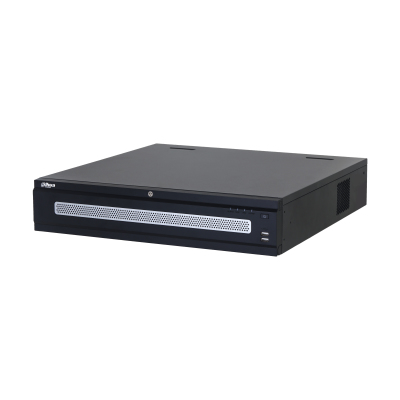

Dahua Technology WizMind NVR608RH-128-XI Black
Dahua Technology

WizMind NVR608RH-128-XI Black

Model NVR608RH-128-XIPart no. DHI-NVR608RH-128-XIEAN 6923172537713

54 specifications
  • OSLinux
  • Weight8.14 kg
  • ColourBlack
  • Video input channels128 channels
  • Number of HDDs installed8
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

OS
Linux
Weight
8.14 kg
Colour
Black
Video input channels
128 channels
Number of HDDs installed
8
Ethernet LAN (RJ-45) ports
2
Brand
Dahua Technology
Model
NVR608RH-128-XI
Part number
DHI-NVR608RH-128-XI
EAN / UPC
6923172537713
Also known as
Dahua Technology WizMind NVR608RH-128-XI Black

Specifications

54 specifications in 10 groups

Performance

Video input channels128 channels
Alarm input channels16
Alarm output channels8
Video recording modes1080p
People countingYes
Video motion detectionYes
Video loss detectionYes
Multi-screenYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Operating system installedLinux
Maximum frame rate30 fps
PTZ controlYes
SnapshotYes
Face detectionYes

Hard drive

Number of HDDs installed8
Maximum storage capacity16 TB
HDD interfaceeSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000,2500 Mbit/s
HDMI outputYes
HDMI ports quantity4
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
Audio RCA inputs1
Audio RCA outputs2
RS-232 interfaceYes
RS-485 ports1
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI

Features

Rack mountingYes
On/off switchYes
Product colourBlack
CertificationFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017

Processor

Built-in processorYes

Power

Power consumption (max)18 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Redundant power supply (RPS) supportYes

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome, Firefox, IE 9 or later

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%

Weight & dimensions

Width476 mm
Depth444 mm
Height95 mm
Weight8.14 kg
Package width618 mm
Package depth571 mm
Package height219 mm
Package weight12.2 kg

Packaging content

Quick installation guideYes
