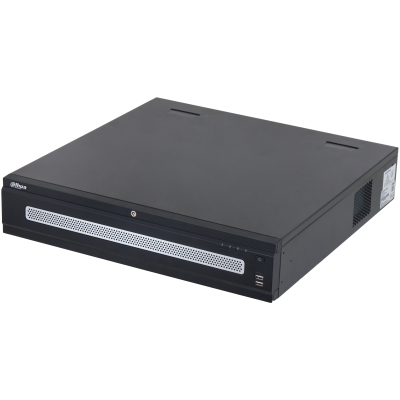

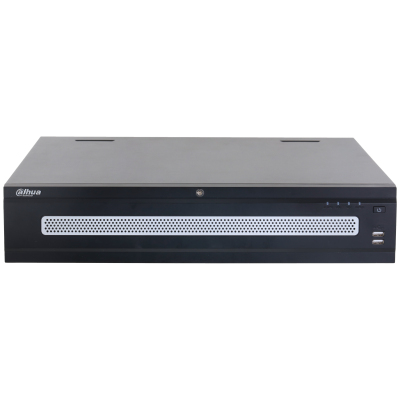

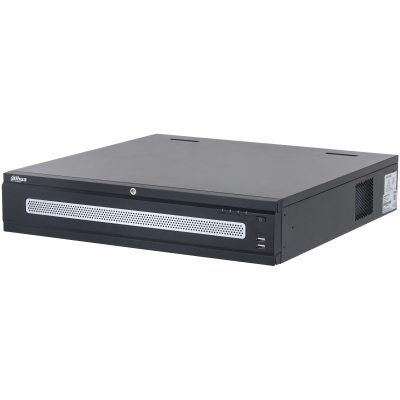

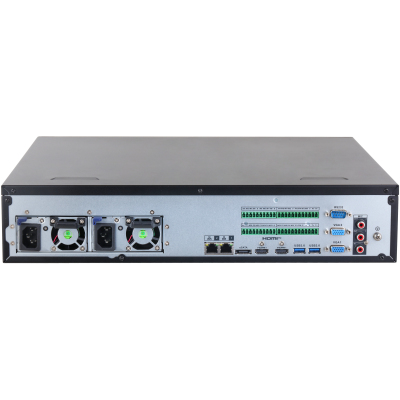

Dahua Technology NVR5864RH-XI 2U Black
Dahua Technology

NVR5864RH-XI 2U Black

Model NVR5864RH-XIPart no. DHI-NVR5864RH-XIEAN 6923172502025

49 specifications
  • Weight8.79 kg
  • ColourBlack
  • Video input channels64 channels
  • Wi-FiNo
  • Number of HDDs supported8
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Weight
8.79 kg
Colour
Black
Video input channels
64 channels
Wi-Fi
No
Number of HDDs supported
8
Ethernet LAN (RJ-45) ports
2
Brand
Dahua Technology
Model
NVR5864RH-XI
Part number
DHI-NVR5864RH-XI
EAN / UPC
6923172502025
Also known as
Dahua Technology NVR5864RH-XI 2U Black

Specifications

49 specifications in 9 groups

Performance

Video input channels64 channels
Alarm input channels16
Alarm output channels8
Number of simultaneously playbacked channels16 channels
Maximum resolution7680 x 4320 pixels
Audio formats supportedG.711, G.711u, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported8
Maximum storage capacity20 TB
HDD interfaceSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
eSATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports2
eSATAYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI

Features

Rack capacity2U
Product colourBlack
CertificationClass A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Power

Power consumption (typical)13 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Redundant power supply (RPS) supportYes

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE; Safari; Edge; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width444 mm
Depth476 mm
Height95 mm
Weight8.79 kg
Package width618 mm
Package depth571 mm
Package height290 mm
Package typeBox
Package weight11.8 kg
