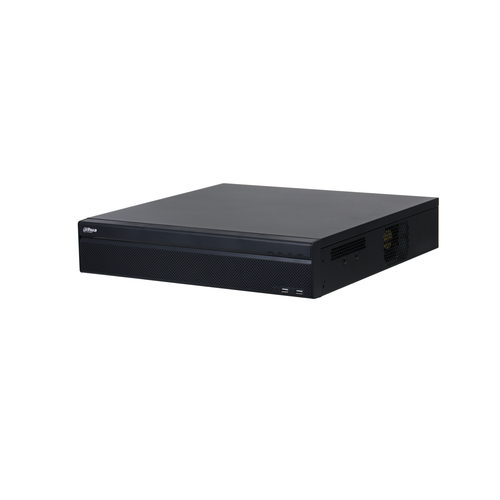

Dahua Technology Pro NVR5864-R-4KS2 2U Black
Dahua Technology

Pro NVR5864-R-4KS2 2U Black

Model NVR5864-R-4KS2Part no. DHI-NVR5864-R-4KS2EAN 6939554919589

50 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight6.55 kg
  • ColourBlack
  • Video input channels64 channels
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
6.55 kg
Colour
Black
Video input channels
64 channels
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR5864-R-4KS2
Part number
DHI-NVR5864-R-4KS2
EAN / UPC
6939554919589
Also known as
Dahua Technology Pro NVR5864-R-4KS2 2U Black

Specifications

50 specifications in 8 groups

Performance

Video input channels64 channels
Alarm input channels16
Number of simultaneously playbacked channels16 channels
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 HDMI2/VGA2: 1920 × 1080
Bit rate20000 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
Playback modesBackup selection, Digital zoom, Fast play, Full screen, Next camera, Pause, Play, Previous camera, Slow play, Stop
Recording modesManual, Schedule, Stop
Recording time120 min

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity10 TB
HDD interfaceSATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)No
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
Audio RCA inputs1
Audio RCA outputs2
RS-232 interfaceYes
RS-485 ports1
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP

Features

Rack mountingYes
Rack capacity2U
Product colourBlack
CertificationCE: EN55022, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL 60950-1

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)16.7 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width440 mm
Depth451.5 mm
Height94.9 mm
Weight6.55 kg
Package weight9.5 kg
