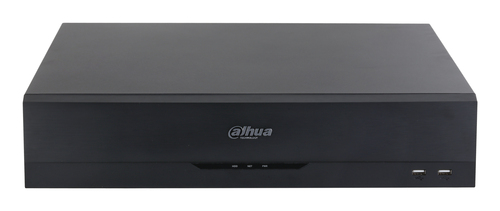

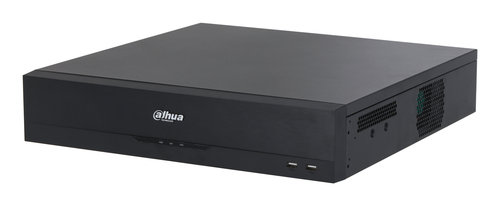

Dahua Technology WizSense NVR5832-EI2 network video recorder Black
Dahua Technology

WizSense NVR5832-EI2 network video recorder Black

Model NVR5832-EI2

56 specifications
  • OSEmbedded LINUX
  • Weight6.27 kg
  • ColourBlack
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs supported8
See all specifications

Overview

OS
Embedded LINUX
Weight
6.27 kg
Colour
Black
Video input channels
32 channels
Wi-Fi
No
Number of HDDs supported
8
Brand
Dahua Technology
Model
NVR5832-EI2
Part number
NVR5832-EI2
Also known as
Dahua Technology WizSense NVR5832-EI2 network video recorder Black

Specifications

56 specifications in 10 groups

Performance

Video input channels32 channels
Alarm input channels16
Alarm output channels8
Number of simultaneously playbacked channels16 channels
Video recording modes1080p, 720p, 960p
Maximum resolution7680 x 4320 pixels
Trigger modeVehicle, Person, Motion
Video motion detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Audio formats supportedG.711 A-law, G.711 μ-law, PCM, G.726
Video formats supportedH.265+, H.265, H.264+, H.264, M-JPEG
Operating system installedEmbedded LINUX
Playback controlsYes
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported8
Maximum storage capacity160 TB
HDD interfaceSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10

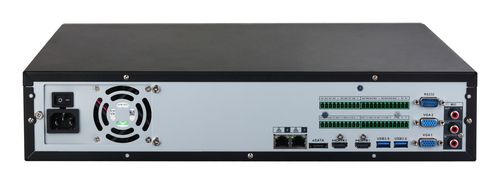

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
eSATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI

Features

LED indicatorsYes
On/off switchYes
Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (typical)13 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE; Safari; Edge; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width440 mm
Depth458.4 mm
Height94.9 mm
Weight6.27 kg
Package width570 mm
Package depth570 mm
Package height226 mm
Package volume8750 cm³
