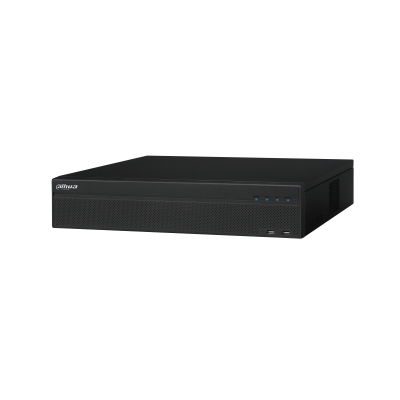

Dahua Technology NVR5816-16P-4KS2E 2U Black
Dahua Technology

NVR5816-16P-4KS2E 2U Black

Model NVR5816-16P-4KS2EPart no. DHI-NVR5816-16P-4KS2E

56 specifications
  • OSEmbedded LINUX
  • Weight7 kg
  • ColourBlack
  • Video input channels16 channels
  • Number of HDDs supported8
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
7 kg
Colour
Black
Video input channels
16 channels
Number of HDDs supported
8
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR5816-16P-4KS2E
Part number
DHI-NVR5816-16P-4KS2E
Also known as
Dahua Technology NVR5816-16P-4KS2E 2U Black

Specifications

56 specifications in 8 groups

Performance

Video input channels16 channels
Alarm input channels16
Alarm output channels6
Maximum resolution3840 x 2160 pixels
Bit rate20000 Kbit/s
Two-way talkYes
Video motion detectionYes
Video loss detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback controlsYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
SnapshotYes
Face detectionYes

Hard drive

Number of HDDs supported8
Maximum storage capacity64 TB
HDD interfaceSATA III
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Power over Ethernet (PoE) ports quantity16
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
RS-232 interfaceYes
RS-485 ports1
eSATAYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P

Features

Rack mountingYes
Rack capacity2U
Product colourBlack
CertificationCE: EN55032; EN55024; EN50130-4; EN60950-1 FCC: Part 15 Subpart B; ANSI C63.4-2014 UL: UL 60950-1

Processor

Built-in processorYes
Processor cores4

Power

Power consumption (typical)17.5 W
AC input voltage100 - 240 V
AC input frequency50 / 60 Hz

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width440 mm
Depth452.5 mm
Height94.9 mm
Weight7 kg
Package width563 mm
Package depth563 mm
Package height215 mm
Package weight9.5 kg
