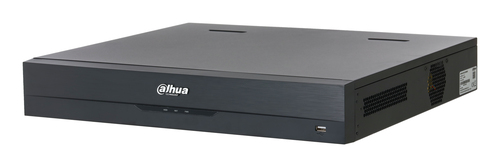

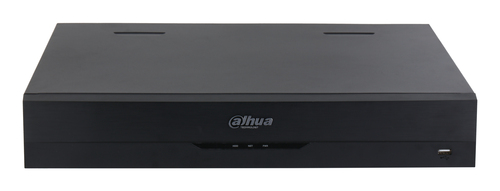

Dahua Technology WizSense NVR5432-EI2 network video recorder 1.5U Black
Dahua Technology

WizSense NVR5432-EI2 network video recorder 1.5U Black

Model NVR5432-EI2EAN 6937552407756

56 specifications
  • OSEmbedded LINUX
  • Weight4.27 kg
  • ColourBlack
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
4.27 kg
Colour
Black
Video input channels
32 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR5432-EI2
Part number
NVR5432-EI2
EAN / UPC
6937552407756
Also known as
Dahua Technology WizSense NVR5432-EI2 network video recorder 1.5U Black

Specifications

56 specifications in 11 groups

Performance

Video input channels32 channels
Alarm input channels16
Alarm output channels6
Maximum resolution7680 x 4320 pixels
People countingYes
Video motion detectionYes
Video loss detectionYes
Multi-screenYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth448 Mbit/s
Maximum frame rate30 fps
Output bandwidth448 Mbit/s
SnapshotYes
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported4
Maximum storage capacity26 TB
HDD interfaceSATA

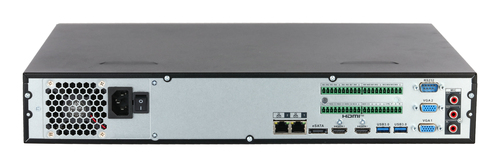

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
USB 2.0 ports quantity1
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
Audio RCA inputs1
Audio RCA outputs2
eSATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, iSCSI, RTMP

Features

Rack mountingYes
Rack capacity1.5U
Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (typical)13 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome, IE, Safari, Edge, Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Technical details

Compliance certificatesCE

Weight & dimensions

Width440 mm
Depth415.6 mm
Height76 mm
Weight4.27 kg
Package width529 mm
Package depth499 mm
Package height211 mm
Package weight6.3 kg
