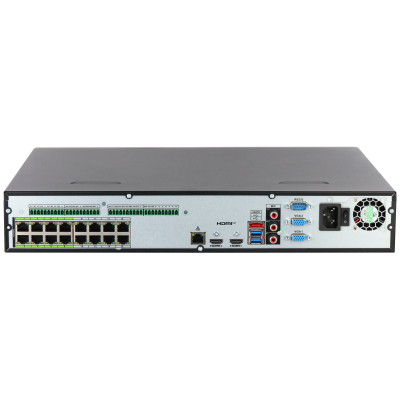

Dahua Technology NVR5432-16HP-XI/PRO network video recorder 1.5U Black
Dahua Technology

NVR5432-16HP-XI/PRO network video recorder 1.5U Black

Model NVR5432-16HP-XI/PROEAN 6937552418165

54 specifications
  • OSEmbedded LINUX
  • Weight4.62 kg
  • ColourBlack
  • Video input channels32 channels
  • Number of HDDs supported4
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
4.62 kg
Colour
Black
Video input channels
32 channels
Number of HDDs supported
4
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR5432-16HP-XI/PRO
Part number
NVR5432-16HP-XI/PRO
EAN / UPC
6937552418165
Also known as
Dahua Technology NVR5432-16HP-XI/PRO network video recorder 1.5U Black

Specifications

54 specifications in 9 groups

Performance

Video input channels32 channels
Alarm input channels4
Alarm output channels2
Number of simultaneously playbacked channels16 channels
Video recording modes1080p
Maximum resolution7680 x 4320 pixels
Supported resolutions1920x1080, 1280x1024, 1280x720, 7680x4320, 3840x2160, 1920x1080
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Operating system installedEmbedded LINUX
Throughput data rate512 Mbit/s
Face detectionYes

Hard drive

Number of HDDs supported4
Maximum storage capacity80 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity1
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI

Features

Rack mountingYes
Rack capacity1.5U
Product colourBlack
CertificationClass A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CELVD: EN 62368-1:2014

Processor

Built-in processorYes

Power

Power consumption (max)18 W
AC input voltage100-240 V
AC input frequency50/60 Hz
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget200 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width440 mm
Depth411.4 mm
Height76 mm
Weight4.62 kg
Package width529 mm
Package depth500 mm
Package height211 mm
Package weight6.75 kg
