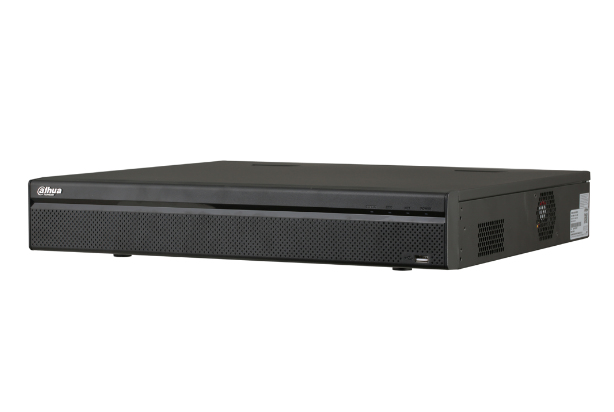

Dahua Technology NVR5416-16P-4KS2E network video recorder 1.5U Black
Dahua Technology

NVR5416-16P-4KS2E network video recorder 1.5U Black

Model NVR5416-16P-4KS2EEAN 8436582040141

55 specifications
  • OSLinux
  • Weight4.65 kg
  • ColourBlack
  • Video input channels16 channels
  • Number of HDDs supported4
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Linux
Weight
4.65 kg
Colour
Black
Video input channels
16 channels
Number of HDDs supported
4
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR5416-16P-4KS2E
Part number
NVR5416-16P-4KS2E
EAN / UPC
8436582040141
Also known as
Dahua Technology NVR5416-16P-4KS2E network video recorder 1.5U Black

Specifications

55 specifications in 9 groups

Performance

Video input channels16 channels
Alarm input channels16
Video recording modes1080p
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 HDMI2/VGA2: 1920 × 1080
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Operating system installedLinux
Backup functionYes
Input bandwidth320 Mbit/s
Maximum frame rate30 fps
Number of fans1 fan(s)

Hard drive

Number of HDDs supported4
Maximum storage capacity10 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI outputYes
HDMI ports quantity2
USB 2.0 ports quantity1
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes
Card reader integratedNo
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Built-in optical driveNo

Features

Rack mountingYes
Rack capacity1.5U
LED indicatorsYes
Product colourBlack
CertificationEN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL 60950-1

Processor

Built-in processorYes
Processor cores4

Display

Built-in displayNo

Power

Power consumption (max)17.5 W
AC input voltage100 - 240 V
AC input frequency50 / 60 Hz
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget150 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C

Weight & dimensions

Width440 mm
Depth411.2 mm
Height76 mm
Weight4.65 kg
Package weight7 kg
