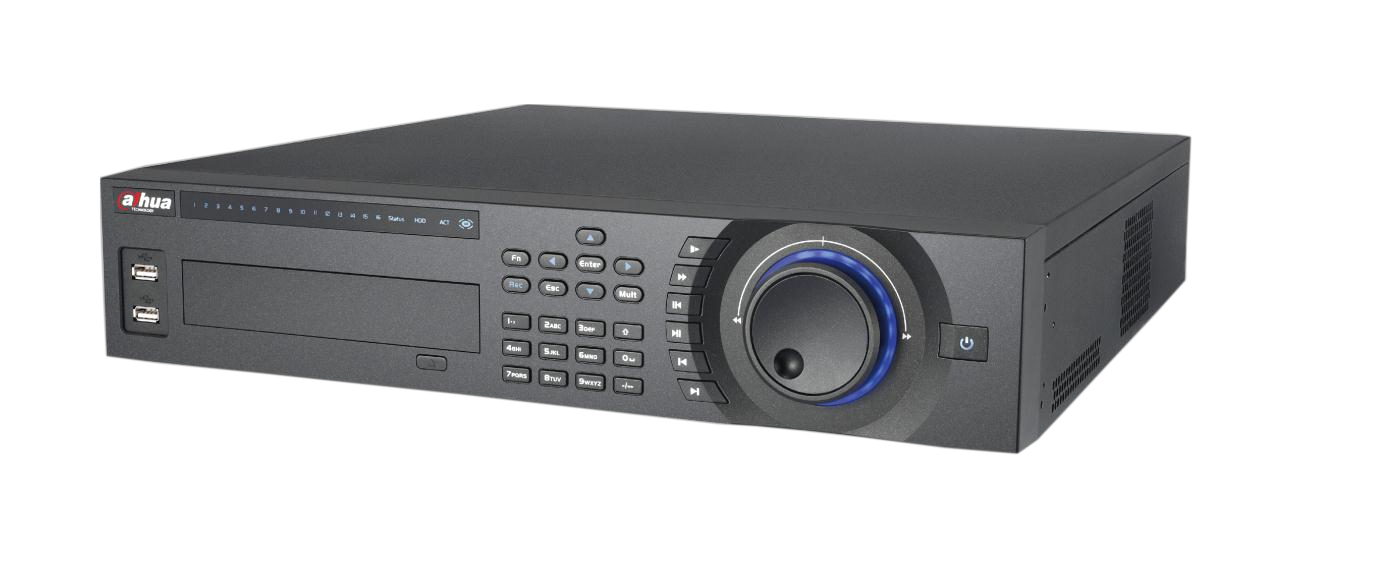

Dahua Technology Lite NVR4832 2U Black
Dahua Technology

Lite NVR4832 2U Black

Model NVR4832Part no. DHI-NVR4832

57 specifications
  • OSEmbedded LINUX
  • Weight6.5 kg
  • ColourBlack
  • Video input channels32 channels
  • Number of HDDs supported8
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

OS
Embedded LINUX
Weight
6.5 kg
Colour
Black
Video input channels
32 channels
Number of HDDs supported
8
Ethernet LAN (RJ-45) ports
2
Brand
Dahua Technology
Model
NVR4832
Part number
DHI-NVR4832
Also known as
Dahua Technology Lite NVR4832 2U Black

Specifications

57 specifications in 9 groups

Performance

Video input channels32 channels
Alarm input channels16
Alarm output channels4
Maximum resolution1920 x 1080 pixels
Supported resolutions1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Bit rate8192 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
On Screen Display (OSD)Yes
Video formats supportedH.264, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback controlsYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
SnapshotYes
Split screenYes
Throughput data rate200 Mbit/s
Recording modesManual, Schedule, Stop
Recording time120 min

Hard drive

Number of HDDs supported8
Maximum storage capacity32 TB

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)No
BNC video outputYes
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
Internal SATA ports quantity8
RS-232 interfaceYes
RS-485 ports1
eSATAYes

Features

Rack mountingYes
Rack capacity2U
Brand compatibilityAny brand
Compatible productsDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
Product colourBlack

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)40 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

System requirements

Mobile operating systems supportedAndroid, Windows Mobile, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width440 mm
Depth460 mm
Height89 mm
Weight6.5 kg
