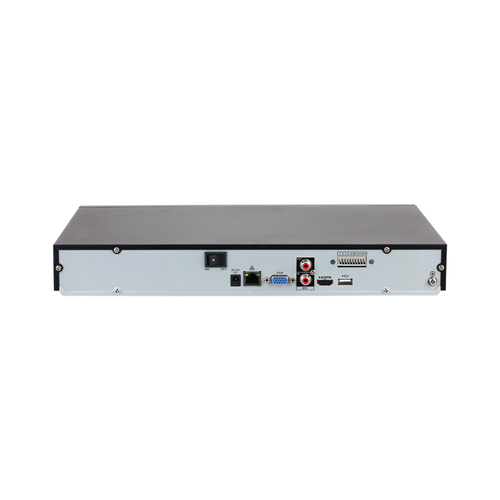

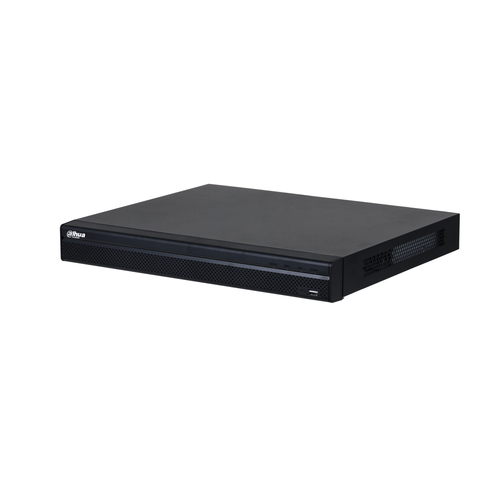

Dahua Technology Lite NVR4232-4KS2/L network video recorder 1U Black
Dahua Technology

Lite NVR4232-4KS2/L network video recorder 1U Black

Model NVR4232-4KS2/LEAN 6923172503909

49 specifications
  • OSEmbedded LINUX
  • Weight1.5 kg
  • ColourBlack
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
1.5 kg
Colour
Black
Video input channels
32 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR4232-4KS2/L
Part number
NVR4232-4KS2/L
EAN / UPC
6923172503909
Also known as
Dahua Technology Lite NVR4232-4KS2/L network video recorder 1U Black

Specifications

49 specifications in 10 groups

Performance

Video input channels32 channels
Alarm input channels4
Alarm output channels2
Video recording modes1080p
People countingYes
Video motion detectionYes
Multi-screenYes
Audio formats supportedAAC, G.726, PCM
Video formats supportedH.264, H.265
Image formats supportedMJPEG
Operating system installedEmbedded LINUX
Backup functionYes
Playback modesSlow play, Frame by Frame, Pause, Play, Stop
SnapshotYes
Recording modesManual
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported2
Maximum storage capacity10 TB
HDD interfaceSATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio output1
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Features

Rack capacity1U
Product colourBlack
CertificationCE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

Processor

Built-in processorYes

Power

Power consumption (typical)5.6 W
Output current4 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width375 mm
Depth282 mm
Height53 mm
Weight1.5 kg
Package width433 mm
Package depth140 mm
Package height363 mm
Package weight2.6 kg
