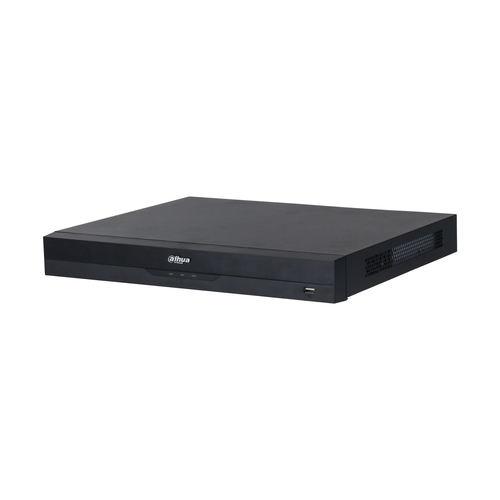

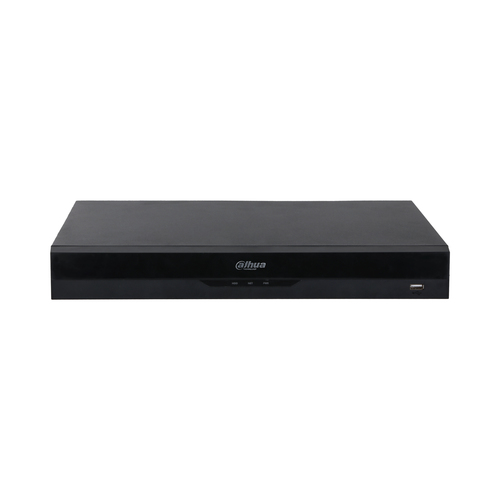

WizSense NVR4216-16P-AI/ANZ
Model NVR4216-16P-AI/ANZPart no. DHI-NVR4216-16P-AI/ANZ
48 specifications
- Storage0 GB
- OSEmbedded LINUX
- Weight2.6 kg
- Video input channels16 channels
- Wi-FiNo
- Number of HDDs installed0
Overview
- Storage
- 0 GB
- OS
- Embedded LINUX
- Weight
- 2.6 kg
- Video input channels
- 16 channels
- Wi-Fi
- No
- Number of HDDs installed
- 0
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR4216-16P-AI/ANZ
- Part number
- DHI-NVR4216-16P-AI/ANZ
- Also known as
- Dahua Technology WizSense NVR4216-16P-AI/ANZ
Specifications
48 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Multi-screen | Yes |
| Operating system installed | Embedded LINUX |
| DHCP client | Yes |
| Input bandwidth | 256 Mbit/s |
| Still image resolution(s) | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Syslog | Yes |
| Recording modes | Event, Manual |
| Face detection | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 16 TB |
| HDD interface | SATA |

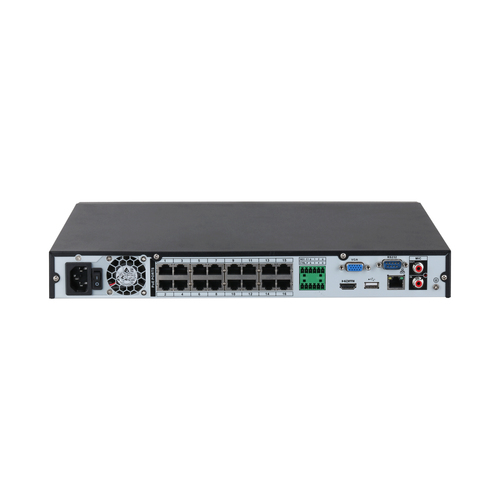

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Ethernet WAN | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-232 interface | Yes |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| On/off switch | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 329.3 mm |
| Height | 53 mm |
| Weight | 2.6 kg |
| Package width | 451 mm |
| Package depth | 425 mm |
| Package height | 147 mm |
| Package weight | 3.8 kg |
