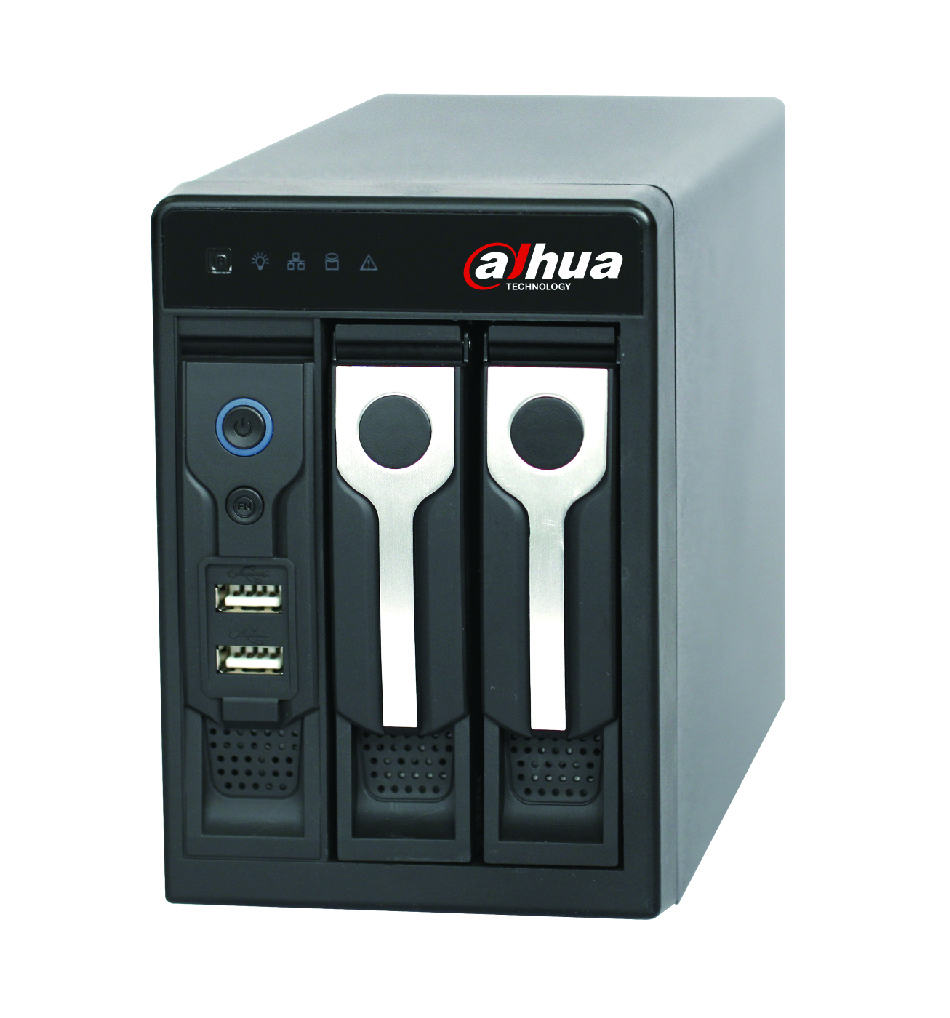

Dahua Technology Lite NVR4208V-8P Black
Dahua Technology

Lite NVR4208V-8P Black

Model NVR4208V-8PPart no. DHI-NVR4208V-8P

54 specifications
  • OSEmbedded LINUX
  • Weight1.6 kg
  • ColourBlack
  • Video input channels8 channels
  • Number of HDDs supported2
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
1.6 kg
Colour
Black
Video input channels
8 channels
Number of HDDs supported
2
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR4208V-8P
Part number
DHI-NVR4208V-8P
Also known as
Dahua Technology Lite NVR4208V-8P Black

Specifications

54 specifications in 9 groups

Performance

Video input channels8 channels
Alarm input channels2
Alarm output channels1
Maximum resolution1920 x 1080 pixels
Supported resolutions1920x1080, 1280x1024, 1280x720, 1024x768
Bit rate8192 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
On Screen Display (OSD)Yes
Video formats supportedH.264, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback controlsYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
SnapshotYes
Split screenYes
Throughput data rate200 Mbit/s
Recording modesManual, Schedule, Stop
Recording time120 min

Hard drive

Number of HDDs supported2
Maximum storage capacity16 TB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Internal SATA ports quantity2
Audio outputYes
Microphone inYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP

Features

Brand compatibilityAny brand
Compatible productsDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek
Product colourBlack

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)10 W
Output current2.3 A
Output voltage53 V

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width100 mm
Depth227 mm
Height146 mm
Weight1.6 kg
