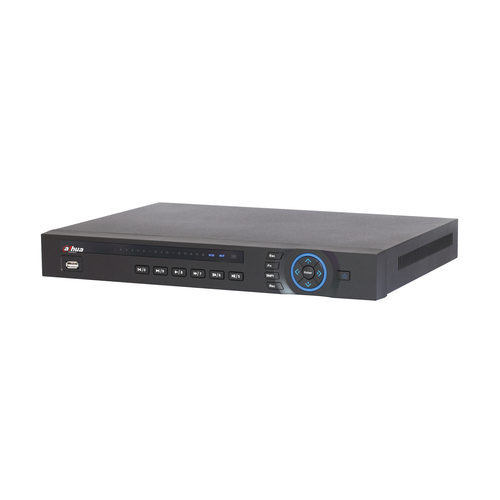

Dahua Technology Lite NVR4204-P 1U Black
Dahua Technology

Lite NVR4204-P 1U Black

Model NVR4204-PPart no. DHI-NVR4204-PEAN 8056450374514

63 specifications
  • OSEmbedded LINUX
  • Weight1.6 kg
  • ColourBlack
  • Video input channels4 channels
  • Number of HDDs supported2
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
1.6 kg
Colour
Black
Video input channels
4 channels
Number of HDDs supported
2
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR4204-P
Part number
DHI-NVR4204-P
EAN / UPC
8056450374514
Also known as
Dahua Technology Lite NVR4204-P 1U Black

Specifications

63 specifications in 9 groups

Performance

Video input channels4 channels
Alarm input channels4
Alarm output channels2
Maximum resolution1920 x 1080 pixels
Supported resolutions1920 x 1080, 1280 x 1024, 1280 x 720 , 1024 x 768
Bit rate20000 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback controlsYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
SnapshotYes
Throughput data rate200 Mbit/s
Recording modesManual, Schedule, Stop
Recording time120 min

Hard drive

Number of HDDs supported2
Maximum storage capacity12 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
SATA revision3.0
Internal SATA ports quantity2
RS-232 interfaceYes
RS-485 ports1
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP

Features

Rack mountingYes
Rack capacity1U
Brand compatibilityAny brand
Compatible productsDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
Product colourBlack
CertificationCE, UL, FCC, EN55022, EN55024, EN50130-4, EN60950-1, Part 15 Subpart B, ANSI C63.4-2014, UL60950-1+CAN/CSA C22.2 No.60950-1

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)20 W
Output current4 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width375 mm
Depth285.8 mm
Height56 mm
Weight1.6 kg
Package weight3.2 kg
