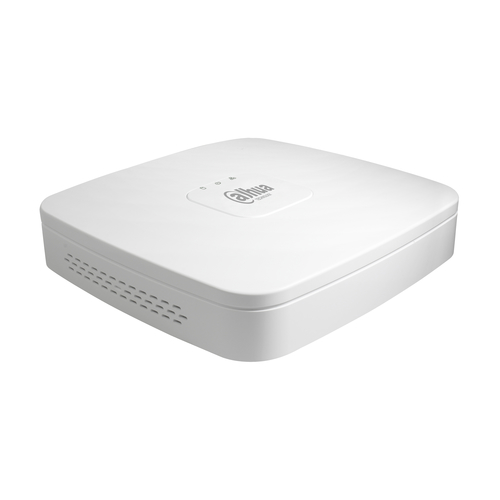

Dahua Technology Lite NVR4116 1U White
Dahua Technology

Lite NVR4116 1U White

Model NVR4116Part no. DHI-NVR4116

55 specifications
  • OSEmbedded LINUX
  • Weight400 g
  • ColourWhite
  • Video input channels16 channels
  • Number of HDDs supported1
  • Rack mountingYes
See all specifications

Overview

OS
Embedded LINUX
Weight
400 g
Colour
White
Video input channels
16 channels
Number of HDDs supported
1
Rack mounting
Yes
Brand
Dahua Technology
Model
NVR4116
Part number
DHI-NVR4116
Also known as
Dahua Technology Lite NVR4116 1U White

Specifications

55 specifications in 9 groups

Performance

Video input channels16 channels
Maximum resolution1920 x 1080 pixels
Supported resolutions1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Bit rate20000 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Video formats supportedH.264, H.264+, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
PTZ controlYes
Playback controlsYes
Playback modesBackup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
SnapshotYes
Throughput data rate80 Mbit/s
Recording modesManual, Schedule, Stop
Recording time120 min

Hard drive

Number of HDDs supported1
Maximum storage capacity6 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)No
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
SATA revision3.0
Internal SATA ports quantity1
Supported network protocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search

Features

Rack mountingYes
Rack capacity1U
Brand compatibilityAny brand
Compatible productsDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek
Product colourWhite
CertificationCE, FCC, UL, EN55022, EN55024, EN50130-4, EN60950-1, Part 15 Subpart B, ANSI C63.4-2014, UL60950-1+CAN/CSA C22.2 No.60950-1

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)10 W
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width204.6 mm
Depth204.6 mm
Height45.6 mm
Weight400 g
Package weight1.5 kg
