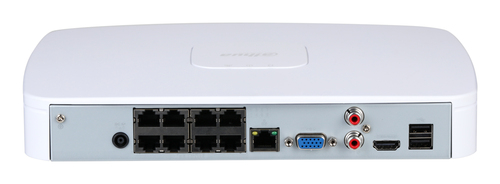

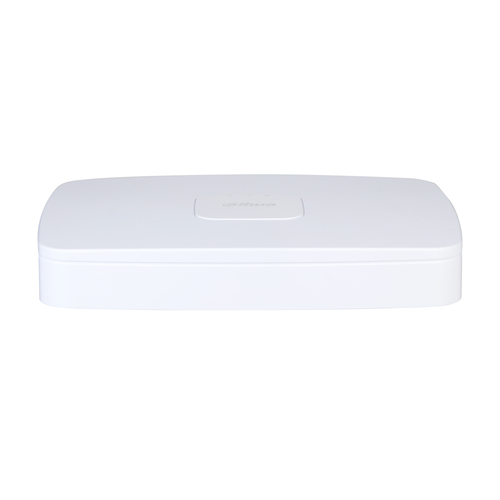

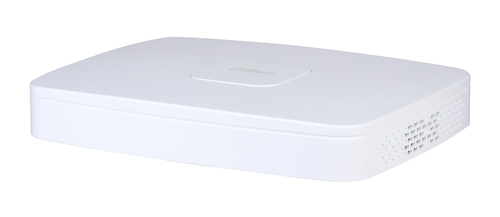

Dahua Technology Lite NVR4108-8P-4KS3 1U White
Dahua Technology

Lite NVR4108-8P-4KS3 1U White

Model NVR4108-8P-4KS3Part no. DHI-NVR4108-8P-4KS3EAN 6923172573810

51 specifications
  • OSEmbedded LINUX
  • Weight690 g
  • ColourWhite
  • Video input channels8 channels
  • Wi-FiNo
  • Maximum storage capacity20 TB
See all specifications

Overview

OS
Embedded LINUX
Weight
690 g
Colour
White
Video input channels
8 channels
Wi-Fi
No
Maximum storage capacity
20 TB
Brand
Dahua Technology
Model
NVR4108-8P-4KS3
Part number
DHI-NVR4108-8P-4KS3
EAN / UPC
6923172573810
Also known as
Dahua Technology Lite NVR4108-8P-4KS3 1U White

Specifications

51 specifications in 10 groups

Performance

Video input channels8 channels
Video recording modes720p, 960p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video motion detectionYes
Multi-screenYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+
Image formats supportedMJPEG
Operating system installedEmbedded LINUX
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Maximum storage capacity20 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Features

Rack mountingYes
Rack capacity1U
Product colourWhite
CertificationCE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Processor

Built-in processorYes

Power

Power consumption (max)25.5 W
Power consumption (typical)10 W
Output current53 A
Output voltage1.81 V
Total Power over Ethernet (PoE) budget72 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE; Safari; Edge; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width270 mm
Depth206.3 mm
Height45.9 mm
Weight690 g
Package width427 mm
Package depth96 mm
Package height262 mm
Package weight1.74 kg
