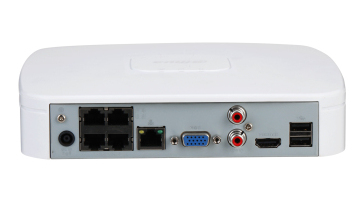

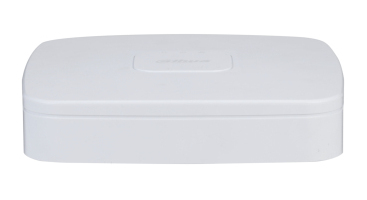

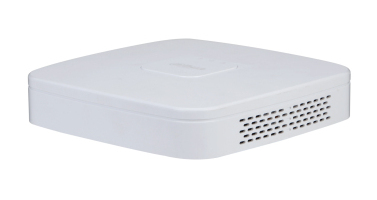

Dahua Technology WizSense NVR4104-P-EI network video recorder 1U White
Dahua Technology

WizSense NVR4104-P-EI network video recorder 1U White

Model NVR4104-P-EI

50 specifications
  • OSEmbedded LINUX
  • Weight500 g
  • ColourWhite
  • Video input channels4 channels
  • Wi-FiNo
  • Maximum storage capacity16 TB
See all specifications

Overview

OS
Embedded LINUX
Weight
500 g
Colour
White
Video input channels
4 channels
Wi-Fi
No
Maximum storage capacity
16 TB
Brand
Dahua Technology
Model
NVR4104-P-EI
Part number
NVR4104-P-EI
Also known as
Dahua Technology WizSense NVR4104-P-EI network video recorder 1U White

Specifications

50 specifications in 10 groups

Performance

Video input channels4 channels
Video recording modes720p, 960p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
People countingYes
Multi-screenYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+
Image formats supportedMJPEG
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth80 Mbit/s
Output bandwidth80 Mbit/s
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Maximum storage capacity16 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Features

Rack mountingYes
Rack capacity1U
Product colourWhite
CertificationEN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Power

Power consumption (max)36 W
Power consumption (typical)25.5 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE9 and later; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC)

Weight & dimensions

Width204.6 mm
Depth206.4 mm
Height45.6 mm
Weight500 g
Package width364 mm
Package depth96 mm
Package height261 mm
Package weight1.38 kg
