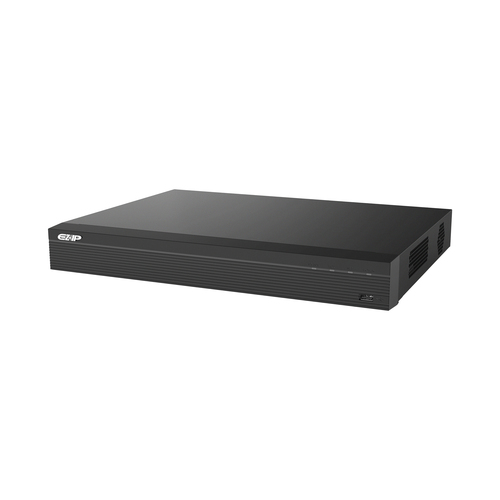

Dahua Technology NVR2B16 network video recorder 1U Black
Dahua Technology

NVR2B16 network video recorder 1U Black

Model NVR2B16EAN 6939554946400

47 specifications
  • Storage0 GB
  • Power4 W
  • OSEmbedded LINUX
  • Weight1.53 kg
  • ColourBlack
  • Video input channels16 channels
See all specifications

Overview

Storage
0 GB
Power
4 W
OS
Embedded LINUX
Weight
1.53 kg
Colour
Black
Video input channels
16 channels
Brand
Dahua Technology
Model
NVR2B16
Part number
NVR2B16
EAN / UPC
6939554946400
Also known as
Dahua Technology NVR2B16 network video recorder 1U Black

Specifications

47 specifications in 10 groups

Performance

Video input channels16 channels
Video recording modes720p, 1080p
Maximum resolution1920 x 1080 pixels
Resolution at capture speed1920x1080@30fps
Number of users128 user(s)
Video motion detectionYes
Number of motion detection zones396
Multi-screenYes
On Screen Display (OSD)Yes
Video formats supportedH.264+, H.265+
Operating system installedEmbedded LINUX
PTZ controlYes
Playback modesBackup selection, Digital zoom, Full screen, Next camera, Pause, Play, Previous camera, Stop
SnapshotYes
Throughput data rate80 Mbit/s
Recording time120 min

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity6 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Supported network protocolsHTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P

Features

Rack mountingYes
Rack capacity1U
On/off switchYes
Product colourBlack
CertificationCE EN55032, EN55024, EN50130-4, EN60950-1 Part 15 Subpart B, ANSI C63.4-2014

Processor

Built-in processorYes

Power

Output current4 A
Output voltage12 V
Power4 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width375 mm
Depth286.2 mm
Height53 mm
Weight1.53 kg
Package typeBox
Package weight2.91 kg
