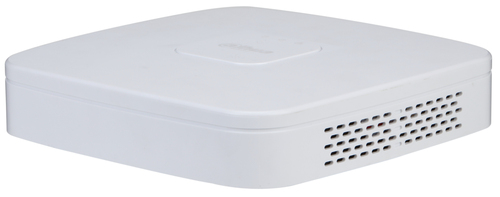

Dahua Technology Lite NVR2116-4KS3 1U White
Dahua Technology

Lite NVR2116-4KS3 1U White

Model NVR2116-4KS3Part no. DHI-NVR2116-4KS3EAN 6923172575524

44 specifications
  • OSEmbedded LINUX
  • Weight450 g
  • ColourWhite
  • Video input channels16 channels
  • Wi-FiNo
  • Maximum storage capacity20 TB
See all specifications

Overview

OS
Embedded LINUX
Weight
450 g
Colour
White
Video input channels
16 channels
Wi-Fi
No
Maximum storage capacity
20 TB
Brand
Dahua Technology
Model
NVR2116-4KS3
Part number
DHI-NVR2116-4KS3
EAN / UPC
6923172575524
Also known as
Dahua Technology Lite NVR2116-4KS3 1U White

Specifications

44 specifications in 10 groups

Performance

Video input channels16 channels
Video recording modes720p, 960p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+
Image formats supportedMJPEG
Operating system installedEmbedded LINUX
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Maximum storage capacity20 TB
HDD interfaceSATA

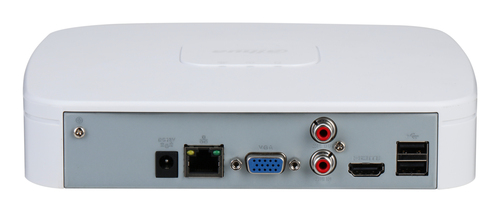

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration

Features

Rack mountingYes
Rack capacity1U
Product colourWhite
CertificationCE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Processor

Built-in processorYes

Power

Power consumption (typical)10 W
Output current1.5 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE; Safari; Edge; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width204.6 mm
Depth206.4 mm
Height45.6 mm
Weight450 g
Package width364 mm
Package depth96 mm
Package height261 mm
Package weight1.05 kg
