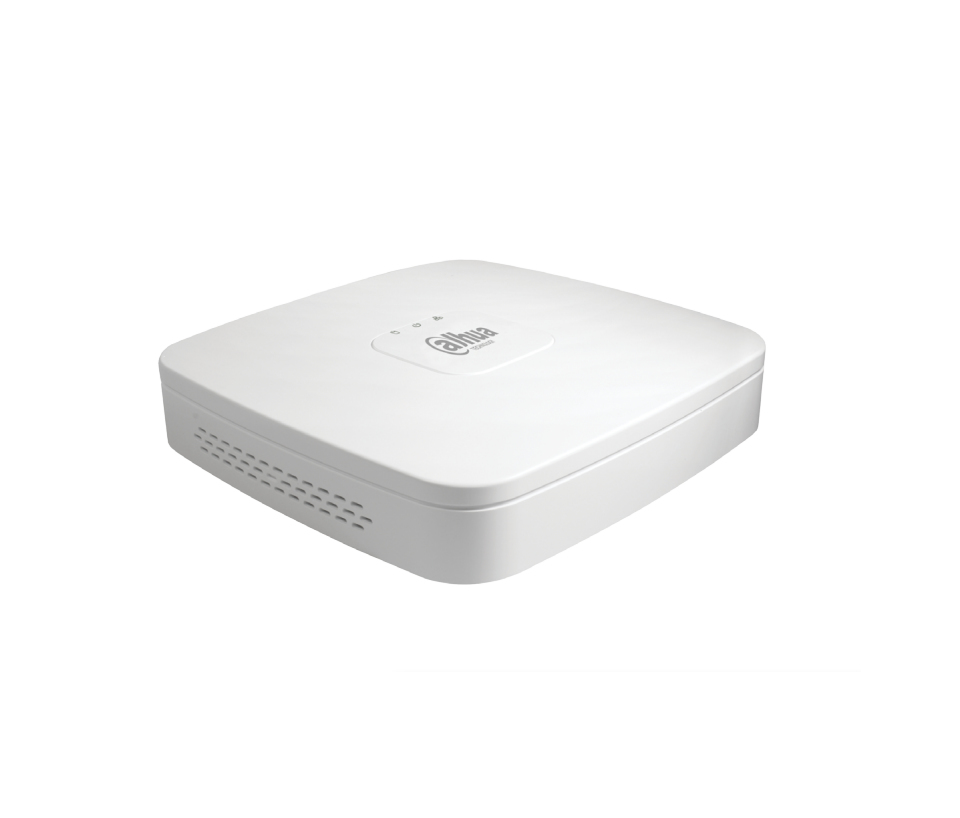

Lite NVR2116-4KS2 1U White
Model NVR2116-4KS2Part no. DHI-NVR2116-4KS2
46 specifications
- Storage0 GB
- Power3 W
- OSEmbedded LINUX
- Weight450 g
- ColourWhite
- Video input channels16 channels
Overview
- Storage
- 0 GB
- Power
- 3 W
- OS
- Embedded LINUX
- Weight
- 450 g
- Colour
- White
- Video input channels
- 16 channels
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR2116-4KS2
- Part number
- DHI-NVR2116-4KS2
- Also known as
- Dahua Technology Lite NVR2116-4KS2 1U White
Specifications
46 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1280 x 1024, 1280 x 720 |
| Bit rate | 16 Kbit/s |
| Number of users | 128 user(s) |
| Video motion detection | Yes |
| Multi-screen | Yes |
| On Screen Display (OSD) | Yes |
| Video formats supported | H.264, H.265 |
| Operating system installed | Embedded LINUX |
| Maximum frame rate | 30 fps |
| PTZ control | Yes |
| Playback modes | Backup selection, Digital zoom, Fast play, Full screen, Next camera, Pause, Play, Previous camera, Shuffle, Slow play, Stop |
| Snapshot | Yes |
| Recording modes | Manual, Schedule, Stop |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 6 TB |
| HDD interface | SATA III |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
| Supported network protocols | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | White |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
Power
| Specification | Value |
|---|---|
| Output current | 2 A |
| Output voltage | 12 V |
| Power | 3 W |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204.6 mm |
| Depth | 204.6 mm |
| Height | 45.6 mm |
| Weight | 450 g |
| Package weight | 1.5 kg |
