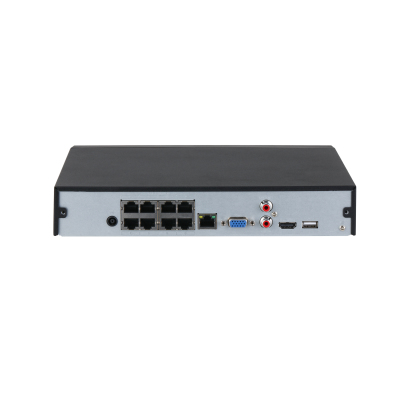

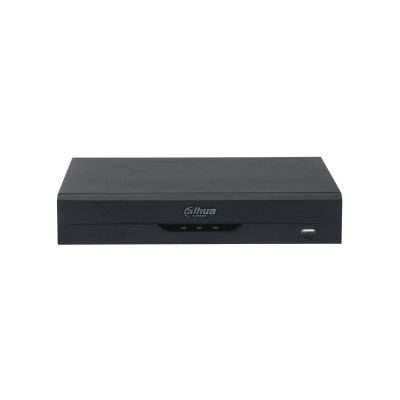

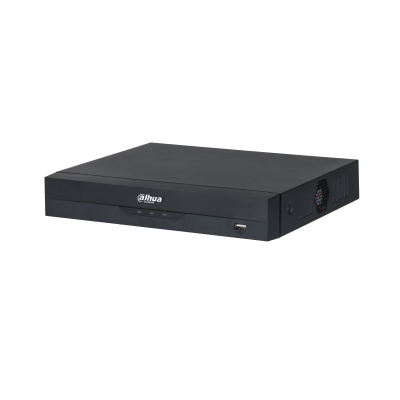

WizSense NVR2108HS-8P-I network video recorder 1U Black
Model NVR2108HS-8P-I
42 specifications
- Storage0 GB
- OSEmbedded LINUX
- Weight920 g
- ColourBlack
- Video input channels8 channels
- Wi-FiNo
Overview
- Storage
- 0 GB
- OS
- Embedded LINUX
- Weight
- 920 g
- Colour
- Black
- Video input channels
- 8 channels
- Wi-Fi
- No
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR2108HS-8P-I
- Part number
- NVR2108HS-8P-I
- Also known as
- Dahua Technology WizSense NVR2108HS-8P-I network video recorder 1U Black
Specifications
42 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Video motion detection | Yes |
| Operating system installed | Embedded LINUX |
| Audio codecs | PCM/G711A/G711U/G26/AAC |
| Backup function | Yes |
| Video codecs | H.264/.H265/Smart H.264+/Smart H.265+/MJPEG |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 8 TB |
| HDD interface | SATA, SATA II, SATA III |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 9 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE/FCC |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 1.8 A |
| Output voltage | 53 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 30 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 232.7 mm |
| Height | 47.6 mm |
| Weight | 920 g |
| Package width | 117 mm |
| Package depth | 373 mm |
| Package height | 307 mm |
| Package weight | 2.07 kg |
