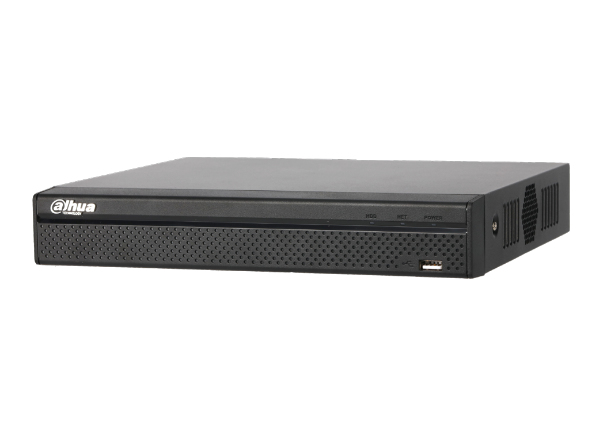

NVR2108HS-4KS2 network video recorder 1U Black
Model NVR2108HS-4KS2EAN 6939554930263
52 specifications
- OSLinux
- Weight800 g
- ColourBlack
- Video input channels8 channels
- Number of HDDs supported1
- Rack mountingYes
Overview
- OS
- Linux
- Weight
- 800 g
- Colour
- Black
- Video input channels
- 8 channels
- Number of HDDs supported
- 1
- Rack mounting
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR2108HS-4KS2
- Part number
- NVR2108HS-4KS2
- EAN / UPC
- 6939554930263
- Also known as
- Dahua Technology NVR2108HS-4KS2 network video recorder 1U Black
Specifications
52 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Number of simultaneously playbacked channels | 2 channels |
| Video recording modes | 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Number of users | 128 user(s) |
| Two-way talk | Yes |
| Video motion detection | Yes |
| Number of motion detection zones | 396 |
| Multi-screen | Yes |
| On Screen Display (OSD) | Yes |
| Video formats supported | H.264, H.265, M-JPEG |
| Operating system installed | Linux |
| Backup function | Yes |
| Maximum frame rate | 30 fps |
| PTZ control | Yes |
| Playback modes | Backup selection, Digital zoom, Full screen, Next camera, Pause, Play, Previous camera |
| Snapshot | Yes |
| Recording modes | Event |
| Recording time | 120 min |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| Maximum storage capacity | 6 TB |
| HDD interface | Serial ATA III |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | No |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Card reader integrated | No |
| Built-in optical drive | No |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Certification | EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL60950-1 |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 3 W |
| Output current | 2 A |
| Output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 224.9 mm |
| Height | 47.6 mm |
| Weight | 800 g |
| Package weight | 1.6 kg |
