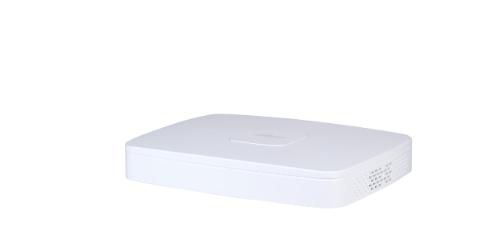

Dahua Technology WizSense NVR2108-8P-I2 network video recorder 1U White
Dahua Technology

WizSense NVR2108-8P-I2 network video recorder 1U White

Model NVR2108-8P-I2EAN 6923172520128

50 specifications
  • OSLinux
  • Weight700 g
  • ColourWhite
  • Video input channels8 channels
  • Number of HDDs installed1
  • Rack mountingYes
See all specifications

Overview

OS
Linux
Weight
700 g
Colour
White
Video input channels
8 channels
Number of HDDs installed
1
Rack mounting
Yes
Brand
Dahua Technology
Model
NVR2108-8P-I2
Part number
NVR2108-8P-I2
EAN / UPC
6923172520128
Also known as
Dahua Technology WizSense NVR2108-8P-I2 network video recorder 1U White

Specifications

50 specifications in 9 groups

Performance

Video input channels8 channels
Video recording modes720p, 1080p
Video motion detectionYes
Multi-screenYes
Operating system installedLinux
Audio codecsPCM; G711A; G711U; G726
Backup functionYes
Playback modesForward, Play, Stop
Video codecsSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Recording modesManual
Face detectionYes

Hard drive

Number of HDDs installed1
Maximum storage capacity10 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

Features

Rack mountingYes
Rack capacity1U
LED indicatorsYes
Product colourWhite
CertificationFCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000- 3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130- 4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017

Processor

Built-in processorYes

Power

Output current1.8 A
Output voltage53 V
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget72 W

System requirements

Linux operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE9 or later; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width270 mm
Depth206.3 mm
Height47.5 mm
Weight700 g
Package width96 mm
Package depth364 mm
Package height261 mm
Package weight1.8 kg
