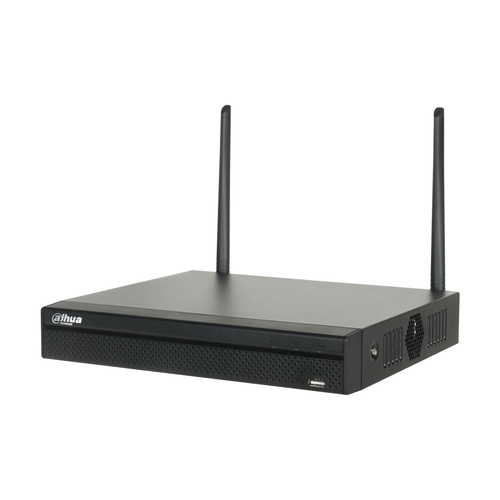

Lite NVR2104HS-W-4KS2 network video recorder 1U Black
Model NVR2104HS-W-4KS2EAN 6939554953163
31 specifications
- OSEmbedded LINUX
- Weight1.3 kg
- ColourBlack
- Video input channels4 channels
- Wi-FiYes
- Number of HDDs supported1
Overview
- OS
- Embedded LINUX
- Weight
- 1.3 kg
- Colour
- Black
- Video input channels
- 4 channels
- Wi-Fi
- Yes
- Number of HDDs supported
- 1
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR2104HS-W-4KS2
- Part number
- NVR2104HS-W-4KS2
- EAN / UPC
- 6939554953163
- Also known as
- Dahua Technology Lite NVR2104HS-W-4KS2 network video recorder 1U Black
Specifications
31 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840 x 2160 1920 x 1080 1280 x 1024 1280 x 720 |
| Number of users | 128 user(s) |
| Multi-screen | Yes |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
| Playback modes | Backup selection, Digital zoom, Fast play, Full screen, Next camera, Pause, Play, Previous camera, Shuffle, Slow play, Stop |
| Recording modes | Manual, Schedule, Stop |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| Maximum storage capacity | 4 TB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, P2P |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 226.9 mm |
| Height | 40.4 mm |
| Weight | 1.3 kg |
| Package weight | 2 kg |
