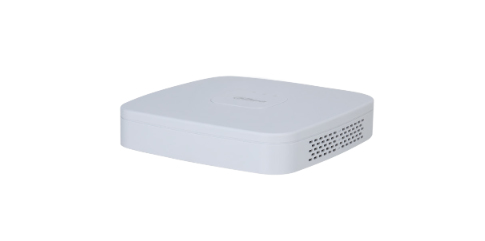

Dahua Technology Lite NVR2104-S3 network video recorder 1U White
Dahua Technology

Lite NVR2104-S3 network video recorder 1U White

Model NVR2104-S3EAN 6923172533159

43 specifications
  • OSEmbedded LINUX
  • Weight420 g
  • ColourWhite
  • Video input channels4 channels
  • Number of HDDs installed1
  • Rack mountingYes
See all specifications

Overview

OS
Embedded LINUX
Weight
420 g
Colour
White
Video input channels
4 channels
Number of HDDs installed
1
Rack mounting
Yes
Brand
Dahua Technology
Model
NVR2104-S3
Part number
NVR2104-S3
EAN / UPC
6923172533159
Also known as
Dahua Technology Lite NVR2104-S3 network video recorder 1U White

Specifications

43 specifications in 9 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Operating system installedEmbedded LINUX
Audio codecsPCM; G711A; G711U; G726
Backup functionYes
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
Playback modesPause, Play, Stop
Video codecsSmart H.265; H.265; Smart H.264; H.264
Recording modesManual

Hard drive

Number of HDDs installed1
Maximum storage capacity16 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P

Features

Rack mountingYes
Rack capacity1U
LED indicatorsYes
Product colourWhite
CertificationCE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B

Processor

Built-in processorYes

Power

Output current1.5 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE 9 or later; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%

Weight & dimensions

Width204.6 mm
Depth206.4 mm
Height45.6 mm
Weight420 g
Package width96 mm
Package depth364 mm
Package height261 mm
Package weight1.03 kg
