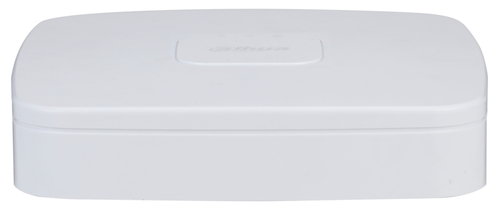

Dahua Technology Lite NVR2104-P-4KS3 network video recorder White
Dahua Technology

Lite NVR2104-P-4KS3 network video recorder White

Model NVR2104-P-4KS3EAN 6923172573520

48 specifications
  • OSEmbedded LINUX
  • Weight480 g
  • ColourWhite
  • Video input channels4 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
480 g
Colour
White
Video input channels
4 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR2104-P-4KS3
Part number
NVR2104-P-4KS3
EAN / UPC
6923172573520
Also known as
Dahua Technology Lite NVR2104-P-4KS3 network video recorder White

Specifications

48 specifications in 10 groups

Performance

Video input channels4 channels
Number of simultaneously playbacked channels4 channels
Maximum resolution3840 x 2160 pixels
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264+, H.265, H.265+, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported1
Maximum storage capacity20 TB
HDD interfaceSATA

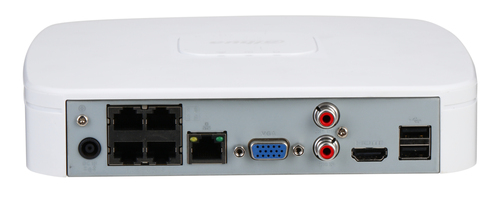

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration

Features

Product colourWhite

Processor

Built-in processorYes

Power

Power consumption (max)36 W
Power consumption (typical)10 W
Output current1.22 A
Output voltage53 V
Power over Ethernet (PoE) power per port25.5 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome, IE, Safari, Edge, Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)-20 - 60%
Storage temperature (T-T)10 - 93 °C

Weight & dimensions

Width204.6 mm
Depth206.4 mm
Height45.6 mm
Weight480 g
Package width364 mm
Package depth96 mm
Package height261 mm
Package weight1.42 kg
