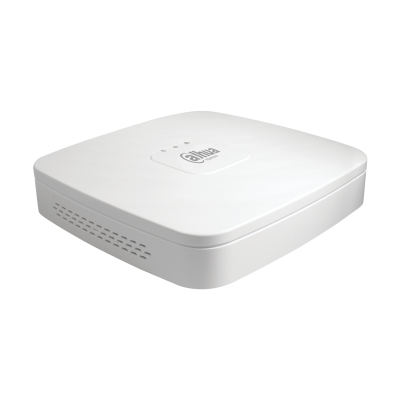

Dahua Technology NVR2104-P-4KS2 network video recorder 1U White
Dahua Technology

NVR2104-P-4KS2 network video recorder 1U White

Model NVR2104-P-4KS2EAN 6939554930232

53 specifications
  • OSEmbedded LINUX
  • Weight450 g
  • ColourWhite
  • Video input channels4 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
450 g
Colour
White
Video input channels
4 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR2104-P-4KS2
Part number
NVR2104-P-4KS2
EAN / UPC
6939554930232
Also known as
Dahua Technology NVR2104-P-4KS2 network video recorder 1U White

Specifications

53 specifications in 10 groups

Performance

Video input channels4 channels
Alarm input channels0
Alarm output channels0
Maximum resolution3840 x 2160 pixels
Supported resolutionsHDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video formats supportedH.264, H.265
Operating system installedEmbedded LINUX
Input bandwidth80 Mbit/s
PTZ controlYes
Playback modesBackup selection, Digital zoom, Fast play, Next camera, Pause, Play, Previous camera, Shuffle, Slow play, Stop
SnapshotYes
Recording modesEvent, Manual, Schedule

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported1
Maximum storage capacity6 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
VGA (D-Sub) output ports1
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Built-in optical driveNo

Features

Rack mountingYes
Rack capacity1U
LED indicatorsYes
Product colourWhite
CertificationEN55032, EN55024, EN50130-4, EN60950-1 Part 15 Subpart B, ANSI C63.4-2014 UL60950-1

Processor

Built-in processorYes
Processor cores2

Display

Built-in displayNo

Power

Power consumption (max)5.3 W
Output current1.25 A
Output voltage48 V
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget50 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width204.6 mm
Depth204.6 mm
Height45.6 mm
Weight450 g
Package weight1.5 kg
