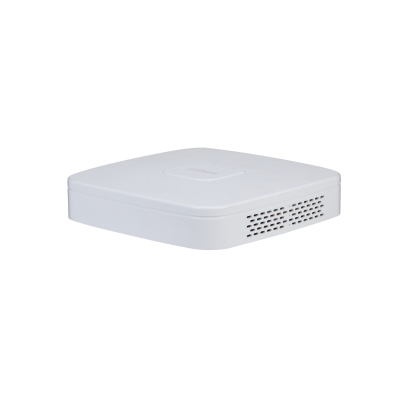

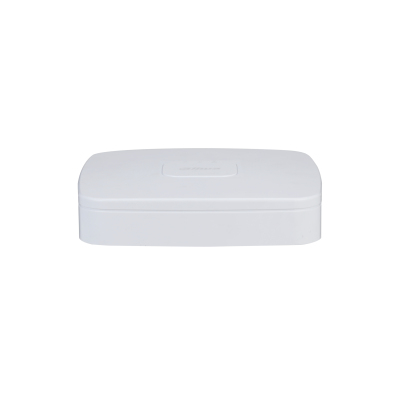

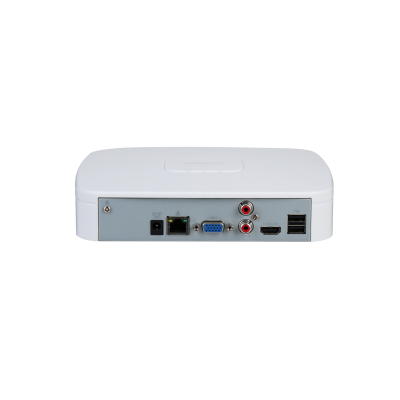

Dahua Technology NVR2104-I network video recorder 1U White
Dahua Technology

NVR2104-I network video recorder 1U White

Model NVR2104-IEAN 6939554998089

47 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight450 g
  • ColourWhite
  • Video input channels4 channels
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
450 g
Colour
White
Video input channels
4 channels
Number of HDDs installed
0
Brand
Dahua Technology
Model
NVR2104-I
Part number
NVR2104-I
EAN / UPC
6939554998089
Also known as
Dahua Technology NVR2104-I network video recorder 1U White

Specifications

47 specifications in 10 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions12M/8M/5M/4M/3M/2M/720p/D1
Video motion detectionYes
Video loss detectionYes
Multi-screenYes
Audio formats supportedAAC, G.711 A-law, G.711 μ-law, PCM
Video formats supportedH.264, H.265, M-JPEG
Operating system installedEmbedded LINUX
PTZ controlYes
Playback controlsYes
Playback modesForward, Full screen, Pause, Play, Reverse, Stop
SnapshotYes
Face detectionYes

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity6 TB
HDD interfaceSerial ATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS

Features

Rack mountingYes
Rack capacity1U
Product colourWhite

Processor

Built-in processorYes

Display

Built-in displayYes

Power

Power consumption (typical)10 W
Output current1.5 A
Output voltage12 V

System requirements

Browser supportedChrome, IE9 or above, Firefox

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width204.6 mm
Depth206.4 mm
Height48.1 mm
Weight450 g
Package width96 mm
Package depth364 mm
Package height261 mm
Package weight1.07 kg
