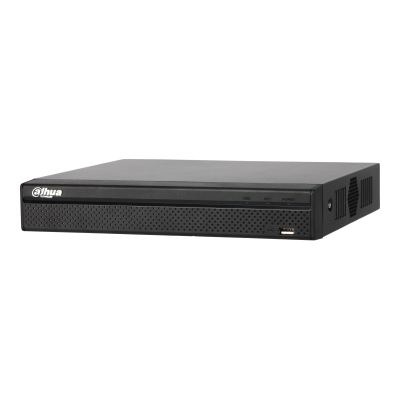

Lite NVR2104-4KS2 network video recorder 1U Black
Model NVR2104-4KS2
37 specifications
- OSEmbedded LINUX
- Weight800 g
- ColourBlack
- Video input channels4 channels
- Maximum storage capacity6 TB
- Ethernet LAN (RJ-45) ports1
Overview
- OS
- Embedded LINUX
- Weight
- 800 g
- Colour
- Black
- Video input channels
- 4 channels
- Maximum storage capacity
- 6 TB
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR2104-4KS2
- Part number
- NVR2104-4KS2
- Also known as
- Dahua Technology Lite NVR2104-4KS2 network video recorder 1U Black
Specifications
37 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| Number of simultaneously playbacked channels | 4 channels |
| Internal memory type | 1 SATA III Port |
| Bit rate | 16 Kbit/s |
| Number of users | 128 user(s) |
| Two-way talk | Yes |
| Video motion detection | Yes |
| Multi-screen | Yes |
| On Screen Display (OSD) | Yes |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
| DHCP client | Yes |
| Playback modes | Backup selection, Digital zoom, Full screen, Next camera, Pause, Play, Previous camera, Shuffle, Stop |
Hard drive
| Specification | Value |
|---|---|
| Maximum storage capacity | 6 TB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | CE FCC |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
Display
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1024 × 768, 1280 x 720, 1280 × 1024, 1920 × 1080 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.5 W |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 224.9 mm |
| Height | 47.6 mm |
| Weight | 800 g |
| Package weight | 1.6 kg |
