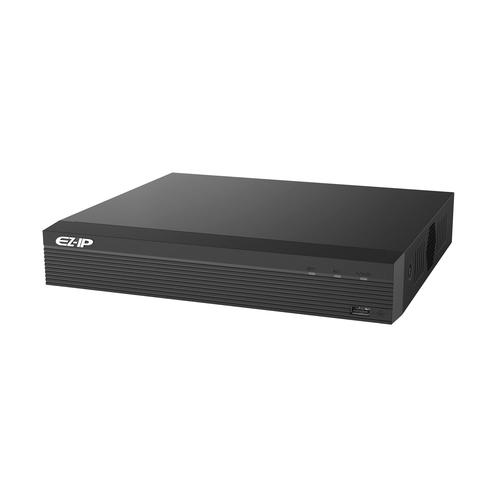

Dahua Technology EZ-IP NVR1B04HS-4P network video recorder 1U Black
Dahua Technology

EZ-IP NVR1B04HS-4P network video recorder 1U Black

Model NVR1B04HS-4P

58 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight860 g
  • ColourBlack
  • Video input channels4 channels
  • Wi-FiNo
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
860 g
Colour
Black
Video input channels
4 channels
Wi-Fi
No
Brand
Dahua Technology
Model
NVR1B04HS-4P
Part number
NVR1B04HS-4P
Also known as
Dahua Technology EZ-IP NVR1B04HS-4P network video recorder 1U Black

Specifications

58 specifications in 10 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160,1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Resolution at capture speed1920x1080@30fps
Bit rate20 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Multi-screenYes
Video formats supportedH.264+, H.265+
Operating system installedEmbedded LINUX
Maximum frame rate30 fps
PTZ controlYes
Playback modesBackup selection, Digital zoom, Fast play, Next camera, Pause, Play, Previous camera, Reverse, Slow play, Stop
SnapshotYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported1
Maximum storage capacity6 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
SATA revision3.0
Internal SATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support IP camera, DVR, NVS and etc.), P2P

Features

Rack mountingYes
Rack capacity1U
Product colourBlack
CertificationCE, EN55032, EN55024, EN50130-4, EN60950-1, FCC, ANSI C63.4-2014

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (typical)6 W
Power over Ethernet (PoE) power per port50 W
Total Power over Ethernet (PoE) budget25.5 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width260 mm
Depth229.3 mm
Height47.6 mm
Weight860 g
Package weight1.87 kg
